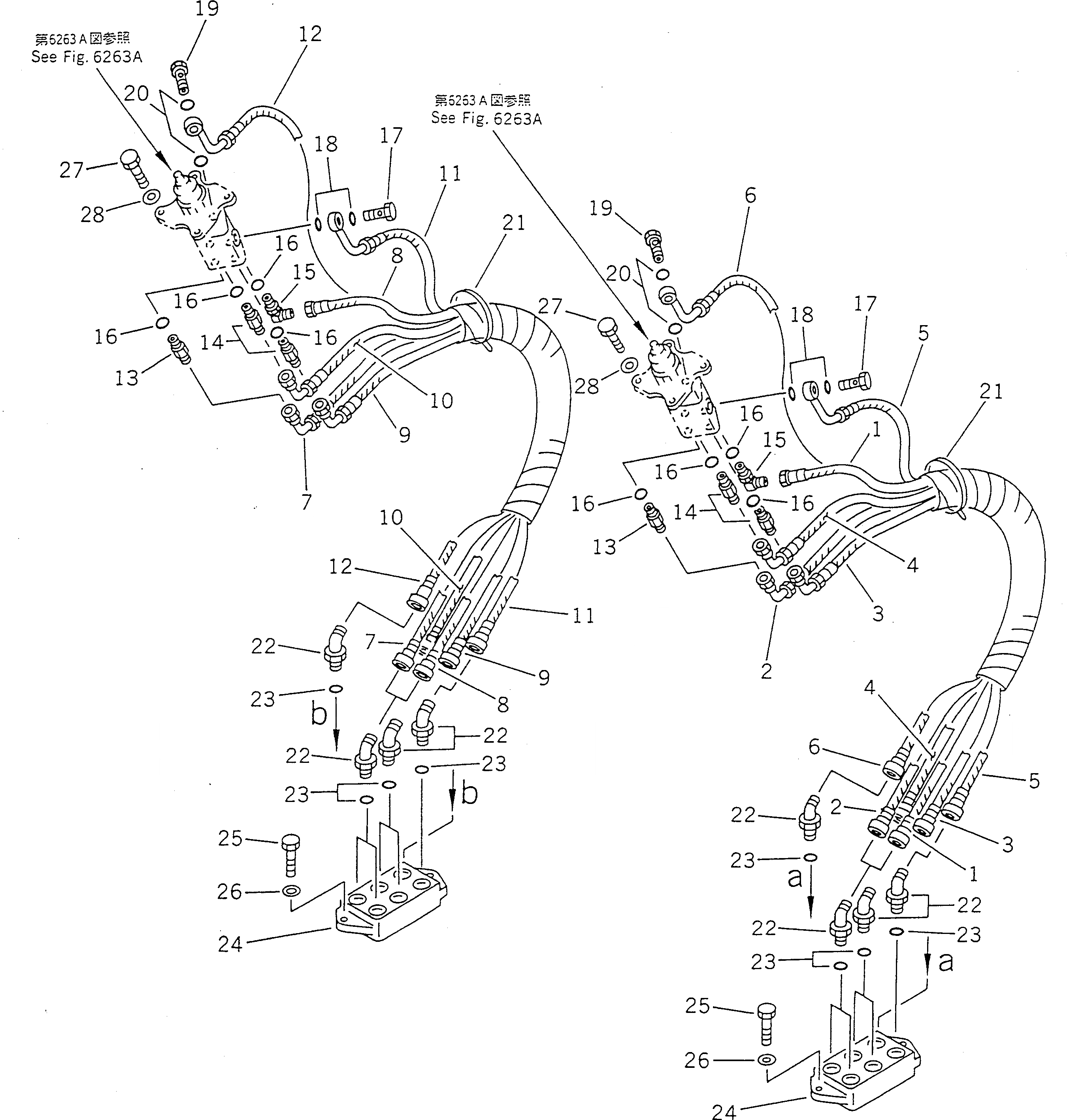

Запчасти Komatsu PC120-5 ГИДРОЛИНИЯ (КЛАПАН PPC TO/FROM БЛОК) (ДЛЯ WRIST УПРАВЛ-Е)(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20Y-62-18850

HOSE, 720MM,(YELLOW)

2

20Y-62-18830

HOSE, 800MM,(WHITE)

3

20Y-62-18840

HOSE, 730MM,(BROWN)

4

20Y-62-18840

HOSE, 730MM,(BLACK)

5

20Y-62-18860

HOSE, 685MM,(RED)

6

20Y-62-18870

HOSE, 685MM,(BLUE)

7

20Y-62-18830

HOSE, 800MM,(WHITE)

8

20Y-62-18850

HOSE, 720MM,(YELLOW)

9

20Y-62-18840

HOSE, 730MM,(BLACK)

10

20Y-62-18840

HOSE, 730MM,(BROWN)

11

20Y-62-18860

HOSE, 685MM,(RED)

12

20Y-62-18870

HOSE, 685MM,(BLUE)

13

205-62-55270

NIPPLE

14

207-62-33950

NIPPLE

15

207-62-33920

ELBOW

16

07002-01423

O-RING

17

20Y-62-18910

BOLT,EYE

18

07000-02018

O-RING

19

20Y-62-18890

BOLT,JOINT

20

07000-02015

O-RING

21

08034-00823

BAND

22

07236-10315

ELBOW

22

20Y-62-18880

ELBOW

23

07002-02034

O-RING

24

20Y-62-16221

BLOCK

25

01010-51035

BOLT

26

01643-51032

WASHER

27

01010-50825

BOLT

28

01643-30823

WASHER
