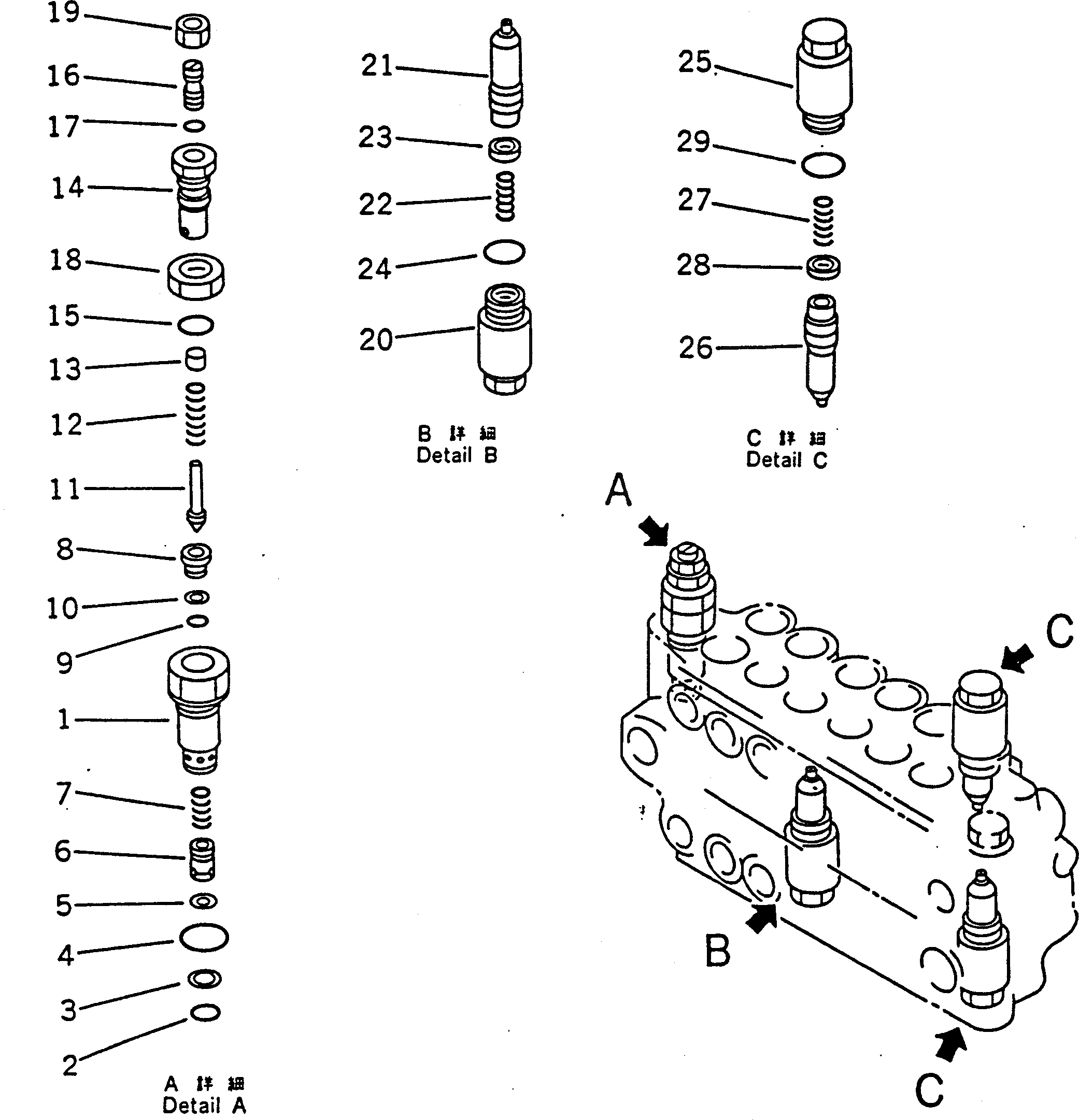

Запчасти Komatsu PC120-5 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-45001

VALVE ASS'Y,L.H.

|$1

700-86-35003

VALVE ASS'Y,L.H.

|$2

700-86-35002

VALVE ASS'Y,L.H.

|$3

709-80-52800

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-13-31161

O-RING

3

700-80-51190

RING,BACK-UP

4

07002-03334

O-RING

5

700-80-51350

RING,SNAP

6

VALVE

7

700-80-51390

SPRING

8

700-80-51740

SEAT

9

07000-22012

O-RING

10

07001-02012

RING,BACK-UP

11

700-80-61190

POPPET

12

709-20-51231

SPRING

13

709-90-51260

RETAINER

14

700-80-51360

HOLDER

15

07002-02434

O-RING

16

700-80-51630

SCREW

17

07000-02011

O-RING

18

07239-12410

NUT

19

01582-11411

NUT

|$23

709-20-81201

VALVE ASS'Y,SUCTION

|$24

700-81-82001

VALVE ASS'Y,SUCTION

|$25

700-81-81000

VALVE ASS'Y,SUCTION

20

709-20-61110

SLEEVE

20

700-80-62310

SLEEVE

21

VALVE

21

VALVE

21

VALVE

22

709-20-61160

SPRING

22

700-80-62250

SPRING

23

SEAL

23

SEAL

24

709-25-11390

O-RING

24

07002-03034

O-RING

|$37

709-20-81201

VALVE ASS'Y,SUCTION

|$38

700-81-81000

VALVE ASS'Y,SUCTION

25

709-20-61110

SLEEVE

25

700-80-62310

SLEEVE

26

VALVE

26

VALVE

27

709-20-61160

SPRING

27

700-80-62250

SPRING

28

SEAL

28

SEAL

29

709-25-11390

O-RING

29

07002-03034

O-RING
