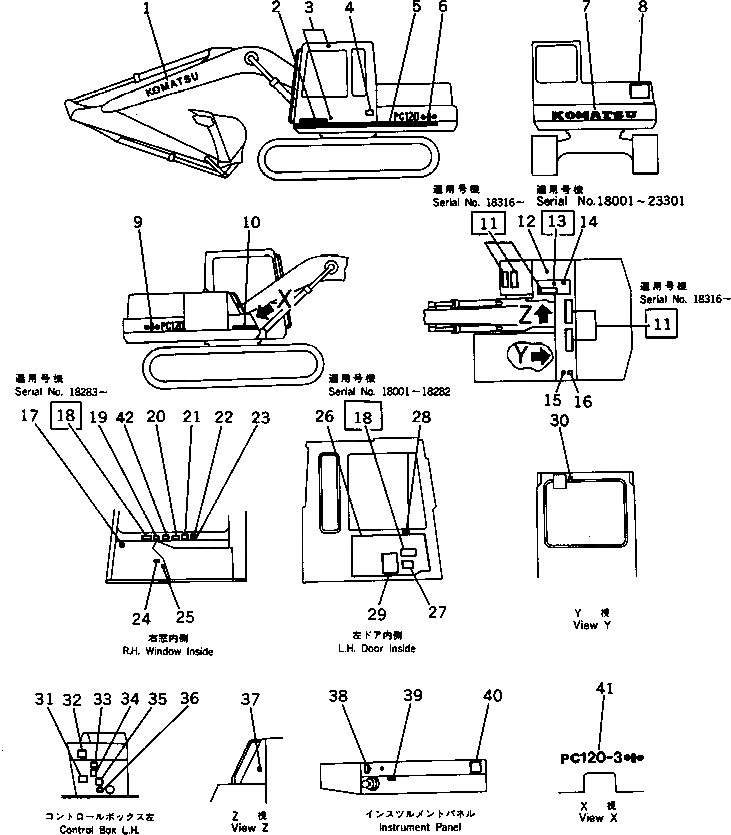

Запчасти Komatsu PC120-3 МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
09690-41250
PLATE, MARK,KOMATSU
2
09690-50500
PLATE, MARK,KOMATSU
3
205-00-63770
PLATE,GUARD
4
09602-01643
PLATE, NAME,(LIMITED SUPPLY)
4
01220-60408
SCREW
4
01601-20410
WASHER,SPRING
5
142-54-16170
STRIPE
5
203-00-41140
PLATE, STRIPE,STRIPE
6
203-00-41111
PLATE, MARK,PC120
7
203-00-41131
PLATE, MARK,KOMATSU
8
09133-00100
PLATE, SAFETY,KEEP OUT OF TURNING AREA
9
203-00-41121
PLATE, MARK,PC120
10
09690-50500
PLATE, MARK,KOMATSU
11
154-54-23260
SEAT,NONSKID
12
09652-01121
PLATE, CAUTION,FUEL
12
09669-00002
PLATE, CAUTION,FUEL
13
09669-00003
PLATE, CAUTION,HYDRAULIC OIL TANK
14
09653-00100
PLATE, SAFETY,HYDRAULIC TANK CAP
14
09653-00100
PLATE, SAFETY,HYDRAULIC TANK CAP
15
09668-00100
PLATE, SAFETY,RADIATOR CAP
16
205-00-65150
PLATE, CAUTION,RADIATOR
16
09650-01103
PLATE, INSTRUCTION,RADIATOR
17
205-00-52192
PLATE, CAUTION
18
205-00-71291
PLATE, OPERATING
18
205-00-71290
PLATE, OPERATING
19
205-00-71350
PLATE, OPERATING
20
205-00-63540
PLATE, CAUTION
21
205-00-63250
PLATE, CAUTION
22
09649-00101
PLATE, INSTRUCTION
23
203-00-31330
PLATE, OPERATING
24
09131-00100
PLATE, SAFETY,SWING LOCK LEVER
25
09685-00002
PLATE, OPERATING,SWING LOCK LEVER
26
203-54-41651
COVER
26
203-54-41650
COVER
27
203-00-21131
PLATE, SAFETY
28
205-00-71340
PLATE, OPERATING,DOOR LOCK
29
203-00-41151
CHART, OIL
29
203-00-41150
CHART, OIL
30
205-00-63230
PLATE, CAUTION,INSPECTION AND MAINTENANCE
31
203-00-41161
PLATE, DATA
31
203-00-41160
PLATE, DATA
32
203-00-31320
PLATE, CAUTION
33
09651-00100
PLATE, SAFETY,BEFORE OPERATING
34
09173-00100
PLATE, SAFETY
35
09667-00100
PLATE, SAFETY
36
203-00-41180
PLATE, OPERATING
37
203-00-31120
PLATE, INSTRUCTION,HYDRAULIC OIL TANK
38
09683-01060
PLATE, OPERATING
39
09685-00001
PLATE, OPERATING,SAFETY LOCK LEVER
40
203-00-41250
PLATE, OPERATING
41
21K-00-22170
PLATE, MARK
42
203-00-41520
PLATE, CAUTION
Выбрано товаров: 52
