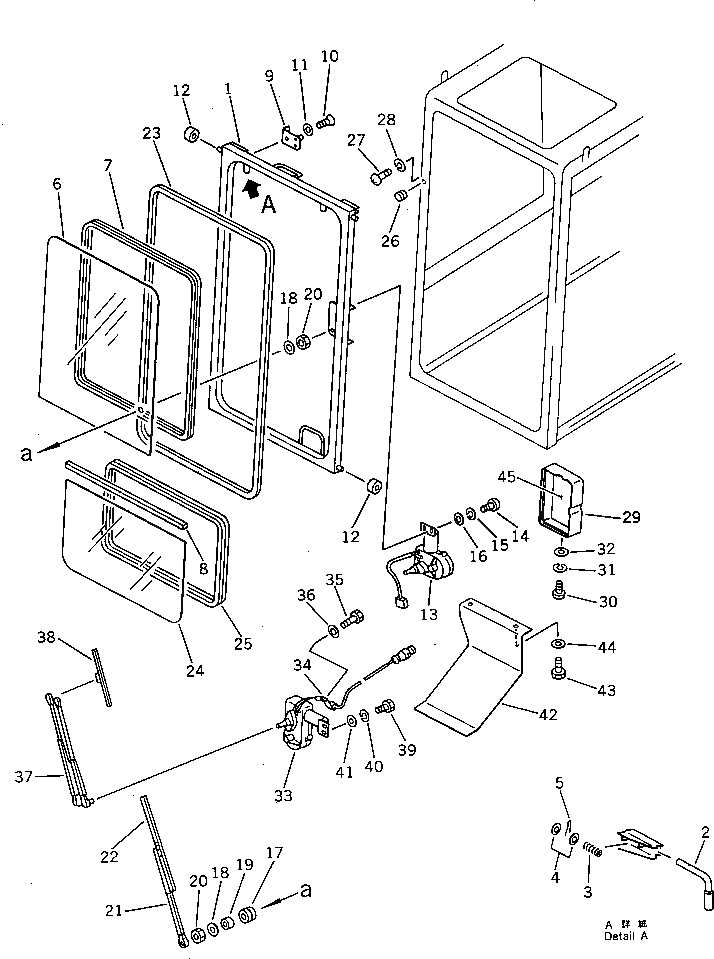

Запчасти Komatsu PC120-3 КАБИНА (/7) (REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

203-54-00433

OPERATOR'S CAB ASS'Y

|$1

203-54-00432

OPERATOR'S CAB ASS'Y

|$2

203-54-00431

OPERATOR'S CAB ASS'Y

|$3

203-54-00430

OPERATOR'S CAB ASS'Y

|$5

20G-54-00031

FRONT WINDOW ASS'Y

|$6

20G-54-00030

FRONT WINDOW ASS'Y

1

203-54-43471

WINDOW,FRONT

1

203-54-43470

WINDOW,FRONT

2

203-54-43650

PIN

3

205-54-66330

SPRING

4

01641-21016

WASHER

5

04050-13018

PIN,COTTER

6

203-54-43560

GLASS

7

205-54-71520

STRIP,WEATHER

8

203-54-43530

SEAL

9

566-54-24511

STRIKER

10

01244-40820

SCREW

11

205-54-72750

WASHER,LOCK

12

205-54-72590

ROLLER

13

203-06-41720

WIPER MOTOR ASS'Y

14

01220-40516

SCREW

15

01601-20513

WASHER,SPRING

16

01641-20508

WASHER

17

205-06-62230

GROMMET

18

205-06-62270

WASHER

19

205-06-62240

COLLAR

20

205-06-62250

NUT

21

205-06-71420

ARM

21A

ND857199-0100

PIN KIT

22

205-06-71430

BLADE

23

203-54-43520

SEAL

24

203-54-43620

GLASS ASS'Y

25

203-54-43570

STRIP,WEATHER

26

09415-01008

CAP

27

01220-40412

SCREW

28

01601-20410

WASHER,SPRING

29

203-54-43150

COVER

30

01220-40410

SCREW

31

01601-20410

WASHER,SPRING

32

01641-20405

WASHER

33

205-06-71730

MOTOR

34

08036-01814

CLIP

35

01010-51016

BOLT

36

01643-31032

WASHER

37

08184-30350

ARM

38

08185-00300

BLADE

39

01220-40516

SCREW

40

01601-20513

WASHER,SPRING

41

01641-20508

WASHER

42

203-46-41450

COVER

43

01010-51020

BOLT

44

01643-31032

WASHER

45

205-54-71190

LINING
