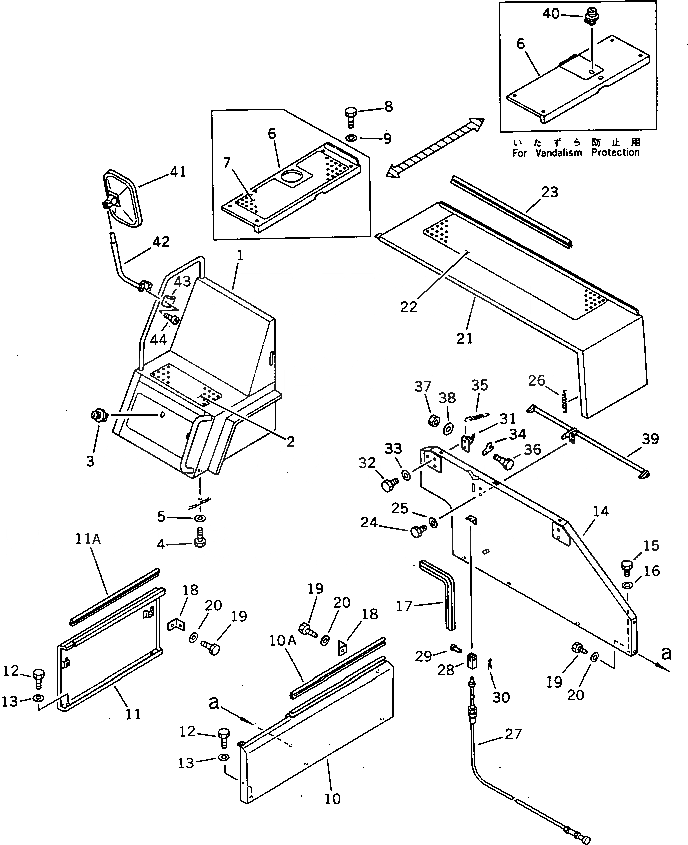

Запчасти Komatsu PC120-3 MACHINERY ОБСТАНОВКА (/) (REGULATION OF SWEDEN)(№8-99) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

203-54-00390

COVER ASS'Y

1

COVER

2

154-54-23260

SEAT

3

205-60-71220

LOCK ASS'Y

4

01010-51025

BOLT

5

01643-31032

WASHER

6

203-54-44880

COVER

6

203-54-45420

COVER,(FOR VANDALISM PROTECTION)

7

203-54-44890

SEAT

8

01010-51020

BOLT

9

01643-31032

WASHER

10

203-54-42170

COVER

10A

203-54-42830

TRIM

11

203-54-42180

COVER

11A

203-54-42830

TRIM

12

01010-51020

BOLT

13

01643-31032

WASHER

14

203-54-42960

COVER

15

01010-51025

BOLT

16

01643-31032

WASHER

17

203-54-42840

TRIM

18

203-54-42780

PLATE

19

01010-51020

BOLT

20

01643-31032

WASHER

21

203-54-44910

COVER

22

203-54-44920

SEAT

23

203-54-42850

TRIM

24

01010-51020

BOLT

25

01643-31032

WASHER

26

203-54-42660

SPRING

27

203-54-42561

CABLE

28

04210-20500

YOKE

29

04205-10514

PIN

30

04050-11210

PIN,COTTER

31

203-54-42290

BRACKET,L.H.

31

203-54-42310

BRACKET,R.H.

32

01010-51020

BOLT

33

01643-31032

WASHER

34

203-54-42320

LEVER

35

203-54-42340

SPRING

36

20T-54-26310

BOLT

37

01580-11210

NUT

38

01643-31232

WASHER

39

203-54-42331

LEVER

40

205-60-71220

LOCK ASS'Y,(FOR VANDALISM PROTECTION)

41

08174-33023

MIRROR

42

203-54-42910

SUPPORT

43

207-54-17840

CLAMP

44

01252-41025

BOLT
