Запчасти Komatsu PC120-3 МОТОР ХОДА (/) (ХОД ВЫС.) ОПЦИОННЫЕ КОМПОНЕНТЫ

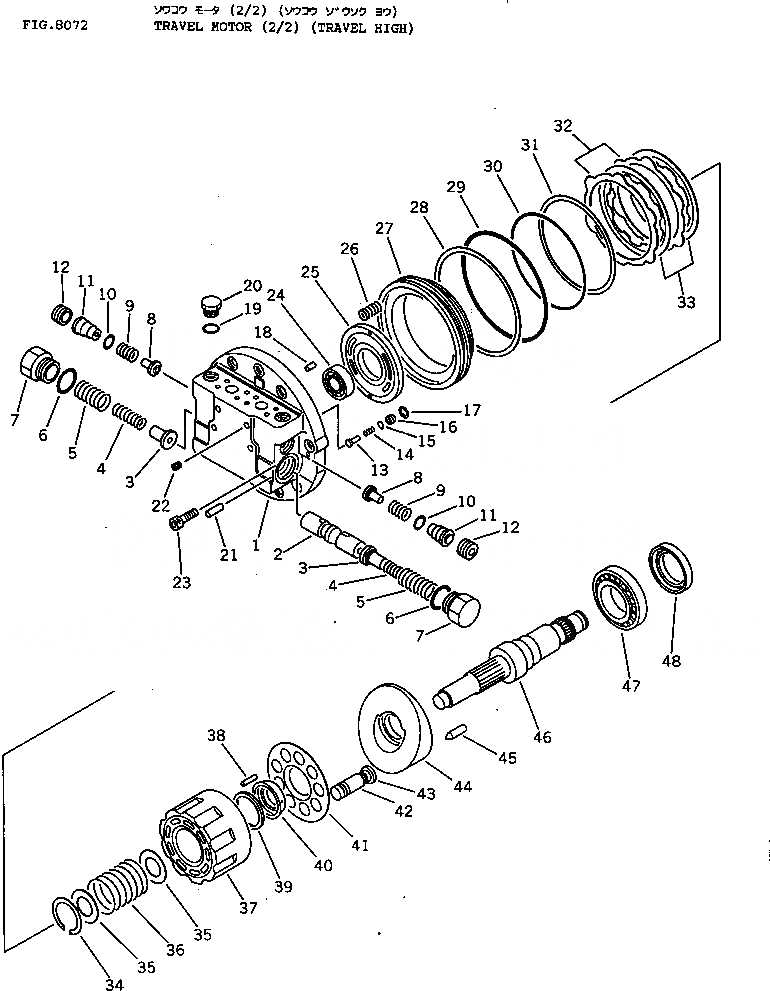

Схема запчастей Komatsu PC120-3 - МОТОР ХОДА (/) (ХОД ВЫС.) ОПЦИОННЫЕ КОМПОНЕНТЫ

Артикул

Название

Примечание

Количество

|1

203-60-00400

TRAVEL MOTOR ASS'Y

|1

203-60-41900

TRAVEL MOTOR ASS'Y

|1

TZ150A2101-0

FLANGE-SPOOL ASS'Y

1

FLANGE,REAR

2

SPOOL

3

TZ200A2052-0

STOPPER

4

TZ200A2056-0

SPRING

5

TZ100A2055-0

SPRING

6

07000-13032

O-RING (KIT)

7

TZ100A2051-0

PLUG

8

TZ150A2054-00

VALVE

9

TZ100A2057-1

SPRING

10

07000-12020

O-RING (KIT)

11

TZ150A2058-0

GUIDE

12

TZ150A2053-0

PLUG

13

TZ430F2019-0

VALVE

14

TZ100A2020-0

SPRING

15

07000-11009

O-RING (KIT)

16

TZ100A2018-0

SEAT,VALVE

17

TZ100A2022-0

RING

18

TZR0PP0050-12

PIN,DOWEL

19

07002-02034

O-RING (KIT)

20

TZ100A2021-0

PLUG

21

TZR0PP0100-28

PIN,DOWEL

22

TZR0HP00001-8

PLUG

23

01252-31440

BOLT

24

06000-06005

BEARING

25

TZ100A2009-00

PLATE,TIMING

26

TZ100A2013-0

SPRING

27

TZ231F2012-0

PISTON

28

TZRSUN2BG170

RING,BACK-UP (KIT)

29

07000-15170

O-RING (KIT)

30

07000-15145

O-RING (KIT)

31

TZ231F2023-00

RING,BACK-UP (KIT)

32

TZ100A2016-0

PLATE

33

TZ200A2015-0

PLATE

34

TZR01R005520

RING,SNAP

35

TZ150A2010-0

WASHER

36

TZ430F2028-0

SPRING

37

TZ150A2004-00

BLOCK,CYLINDER

38

TZR0P0030-30

PIN,DOWEL

39

TZ100A2011-0

WASHER

40

TZ100A2008-0

BALL,THRUST

41

TZ100A2007-0

PLATE,RETAINER

|42

TZ430F2102-00

PISTON ASS'Y,PISTON

42

PISTON

43

SHOE

44

TZ200A2003-00

PLATE,SWASH

45

TZ150A2017-0

PIN

46

TZ150A2002-0

SHAFT

47

TZ150A2049-0

BEARING

48

TZ0487012

SEAL,OIL (KIT)

|49

TZ150A9000-00

SEAL KIT

|49

O-RING

|49

07000-15260

O-RING

|49

SEAL,FLOATING

|49

07000-11006

O-RING

|49

O-RING

|49

07000-15270

O-RING

|49

07000-13032

O-RING

|49

07000-12020

O-RING

|49

07000-11009

O-RING

|49

07002-02034

O-RING

|49

RING,BACK-UP

|49

07000-15170

O-RING

|49

07000-15145

O-RING

|49

RING,BACK-UP

|49

SEAL,OIL

Выбрано товаров: 68
