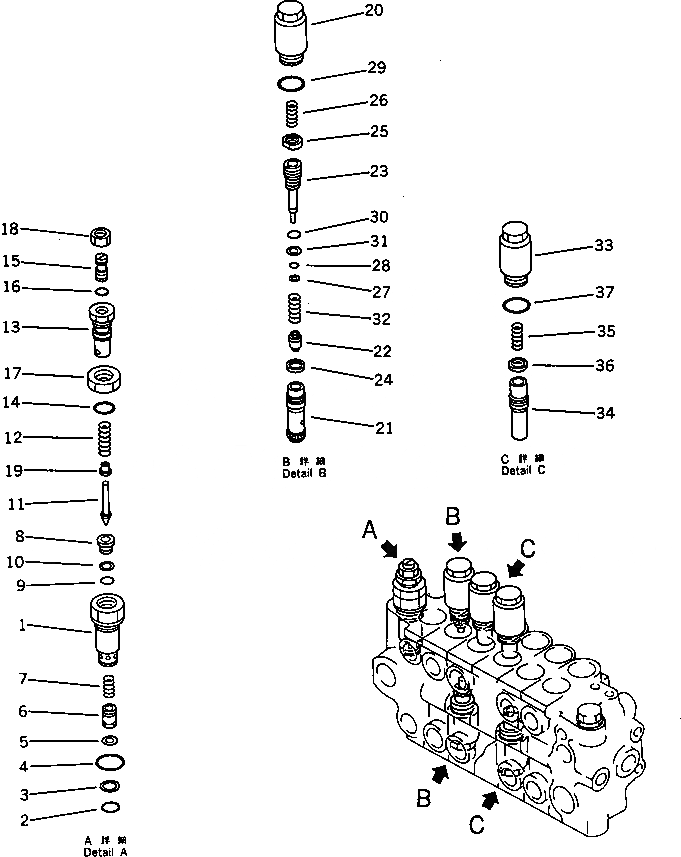

Запчасти Komatsu PC120-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-19003

CONTROL VALVE ASS'Y,L.H.

|1

700-86-19002

CONTROL VALVE ASS'Y,L.H.

|1

700-86-19001

CONTROL VALVE ASS'Y,L.H.

|1

700-84-55001

RELIEF VALVE ASS'Y

1

SLEEVE

2

700-13-31161

O-RING

3

700-80-51190

RING,BACK-UP

4

07002-03334

O-RING

5

700-80-51350

RING,SNAP

6

VALVE

7

700-80-51390

SPRING

8

700-80-51340

SEAT

9

07000-22012

O-RING

10

07001-02012

RING,BACK-UP

11

720-68-15540

POPPET

12

720-68-15560

SPRING

13

700-80-51360

HOLDER

14

07002-02434

O-RING

15

700-80-51630

SCREW

16

07000-02011

O-RING

17

07239-12410

NUT

18

01582-11411

NUT

19

720-68-15550

RETAINER

|20

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

20

700-80-62310

SLEEVE

21

VALVE

22

POPPET

23

PISTON

24

SEAL

25

NUT

26

700-80-62250

SPRING

27

SEAL

28

O-RING

29

07002-03034

O-RING

30

O-RING

31

RING,BACK-UP

32

SPRING

|33

700-81-81000

VALVE ASS'Y,SUCTION

33

SLEEVE

34

VALVE

35

700-80-62250

SPRING

36

SEAL

37

07002-03034

O-RING
