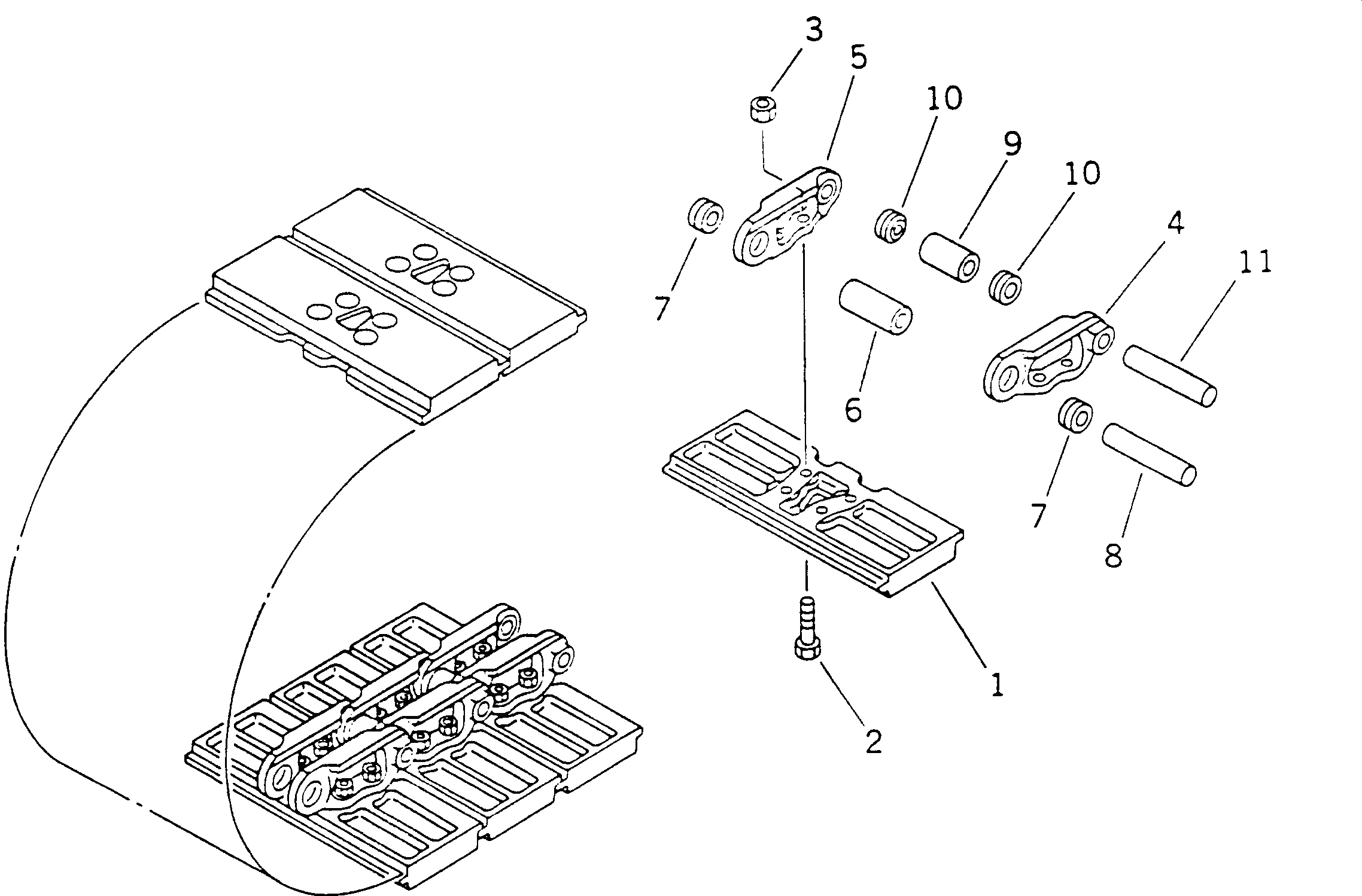

Запчасти Komatsu PC120-3 ГУСЕНИЦЫ () ХОДОВАЯ

|$1

203-32-01071

TRACK SHOE ASS'Y

|$2

203-32-01070

TRACK SHOE ASS'Y

1

202-32-11311

SHOE,TRACK

2

203-32-21210

BOLT, SHOE (KIT)

3

01803-01420

NUT,SHOE (KIT)

|$6

203-32-00011

TRACK LINK ASS'Y

|$7

203-32-00010

TRACK LINK ASS'Y

4

110-32-11322

LINK,TRACK, L.H.

5

110-32-11332

LINK,TRACK, R.H.

6

203-32-11342

BUSHING, REGULAR,REGULAR

6

203-32-11341

BUSHING,REGULAR

7

203-32-11360

SEAL,DUST, REGULAR

8

203-32-11351

PIN,REGULAR

9

203-32-11372

BUSHING, MASTER,MASTER

9

203-32-11371

BUSHING,MASTER

10

203-32-11380

SEAL,DUST, MASTER

11

203-32-11391

PIN,MASTER

1

203-32-05010

SHOE BOLT AND NUT K.

1

203-32-21210

BOLT, SHOE

2

01803-01420

NUT,SHOE

6

202-98-09112

BUSHING,REGULAR

6

202-98-09111

BUSHING,REGULAR

8

202-98-09011

PIN,REGULAR

9

202-98-09142

BUSHING,MASTER

9

202-98-09141

BUSHING,MASTER

11

202-98-09041

PIN,MASTER

6

202-98-09132

BUSHING,REGULAR

6

202-98-09131

BUSHING,REGULAR

8

202-98-09031

PIN,REGULAR

9

202-98-09162

BUSHING,MASTER

9

202-98-09161

BUSHING,MASTER

11

202-98-09061

PIN,MASTER
