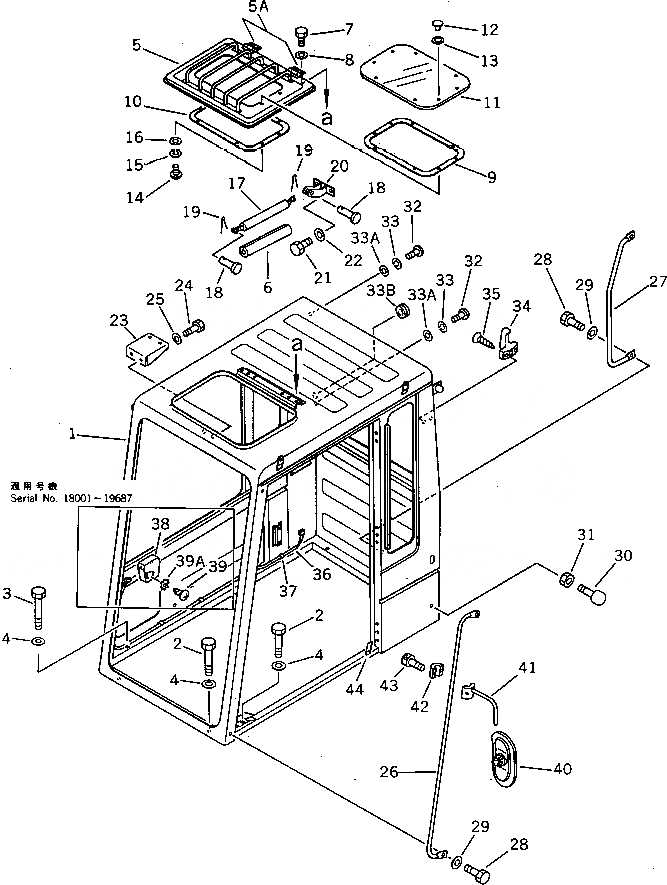

Запчасти Komatsu PC120-3 КАБИНА (/7) (REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

203-54-00433

OPERATOR'S CAB ASS'Y

|$1

203-54-00432

OPERATOR'S CAB ASS'Y

|$2

203-54-00431

OPERATOR'S CAB ASS'Y

|$3

203-54-00430

OPERATOR'S CAB ASS'Y

1

203-54-43111

CAB

1

203-54-43110

CAB

2

01010-51245

BOLT

3

01010-51265

BOLT

4

01643-31232

WASHER

5

203-54-43821

COVER

5

203-54-43820

COVER

5A

203-54-45670

HINGE

6

203-54-43160

BUSHING

7

01010-50612

BOLT

7

01010-50612

BOLT

8

01643-30623

WASHER

8

01643-30623

WASHER

9

205-54-77360

SEAL

10

203-54-43910

PLATE

11

205-54-77370

GLASS

12

205-54-51720

RETAINER

13

205-54-51730

PACKING

14

01220-40610

SCREW

15

01602-20619

WASHER,SPRING

16

01642-20608

WASHER

17

205-54-63650

GAS SPRING ASS'Y

18

04205-10825

PIN

19

04050-12012

PIN,COTTER

20

203-54-43640

BRACKET

21

01010-50816

BOLT

22

01643-30823

WASHER

23

205-54-77380

BRACKET

24

01010-50616

BOLT

25

01643-30623

WASHER

26

203-54-43230

GRIP

27

203-54-43431

GRIP

27

203-54-43430

GRIP

28

01010-51025

BOLT

29

01643-31032

WASHER

30

09453-00002

STOPPER

31

01580-11210

NUT

32

01220-40410

SCREW

33

01601-20410

WASHER,SPRING

33A

01641-20405

WASHER

33B

09415-00706

CAP

34

205-54-51250

HANGER

35

01381-10420

SCREW

36

203-06-41710

WIRE

37

205-54-72710

CLIP

38

201-54-23221

ASHTRAY

39

01370-00410

SCREW

39A

01611-04045

WASHER

40

08174-13116

MIRROR

41

205-54-77120

SUPPORT

42

207-54-77550

CLAMP

43

01252-41025

BOLT

44

203-54-44980

RUBBER
