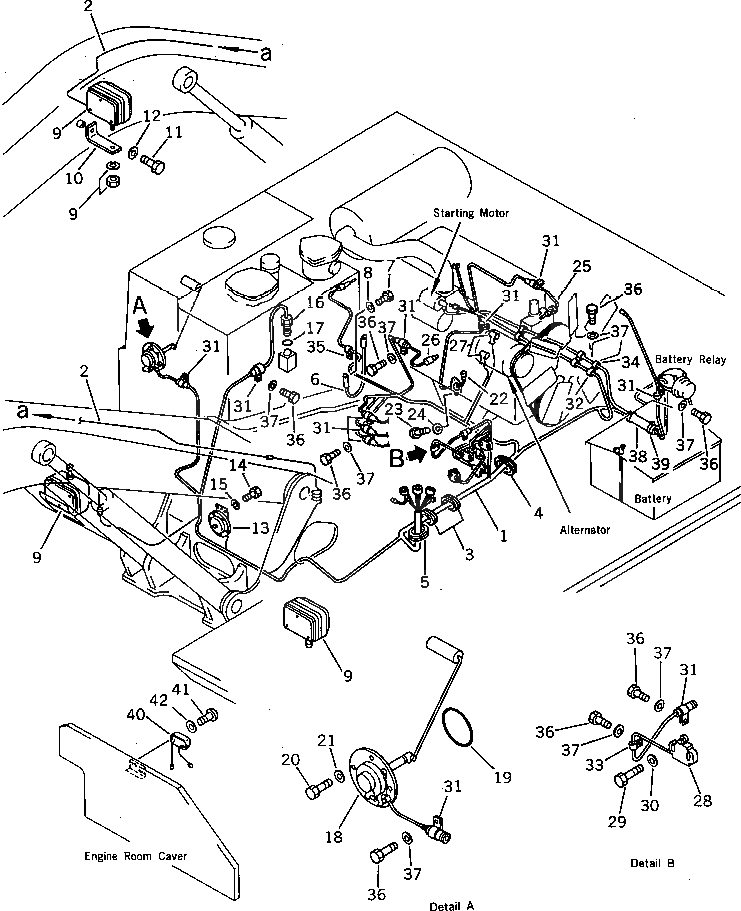

Запчасти Komatsu PC120-3 ЭЛЕКТРИКА (REGULATION OF SWEDEN)(№8-99) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-06-41742

WIRE ASS'Y

1

203-06-41741

WIRE ASS'Y

2

203-06-41780

WIRE

3

203-06-41550

GROMMET

4

150-95-27160

GROMMET

5

176-911-4160

GROMMET

6

205-06-71321

SWITCH,HEATER

7

01010-51016

BOLT

8

01643-31032

WASHER

9

22W-06-12381

LAMP ASS'Y

10

203-06-41130

BRACKET

11

01010-51430

BOLT

12

01643-31445

WASHER

13

08160-52400

HORN

14

01010-50816

BOLT

15

01602-20825

WASHER,SPRING

16

7861-99-4500

SENSOR,HYDRAULIC OIL LEVEL

17

07002-23634

O-RING

18

7861-99-4700

SENSOR,FUEL LEVEL

19

07000-02085

O-RING

20

01010-51025

BOLT

21

01643-31032

WASHER

22

203-06-41160

SENSOR

23

01010-50816

BOLT

24

01602-20825

WASHER,SPRING

25

7861-99-3300

SENSOR,WATER TEMPERATURE

26

7861-99-1300

SENSOR,ENGINE OIL PRESSURE

27

08038-00519

CAP

28

22W-06-15860

SWITCH

29

01010-51035

BOLT

30

01643-31032

WASHER

31

08036-01814

CLIP

32

08036-01414

CLIP

33

08036-10814

CLIP

34

08036-11214

CLIP

35

08036-10614

CLIP

36

01010-51020

BOLT

37

01643-31032

WASHER

38

203-04-31230

COVER

39

08038-00519

CAP

40

08141-02400

LAMP

40

08116-02410

BULB, 10W

41

01220-40412

SCREW

42

01641-20405

WASHER
