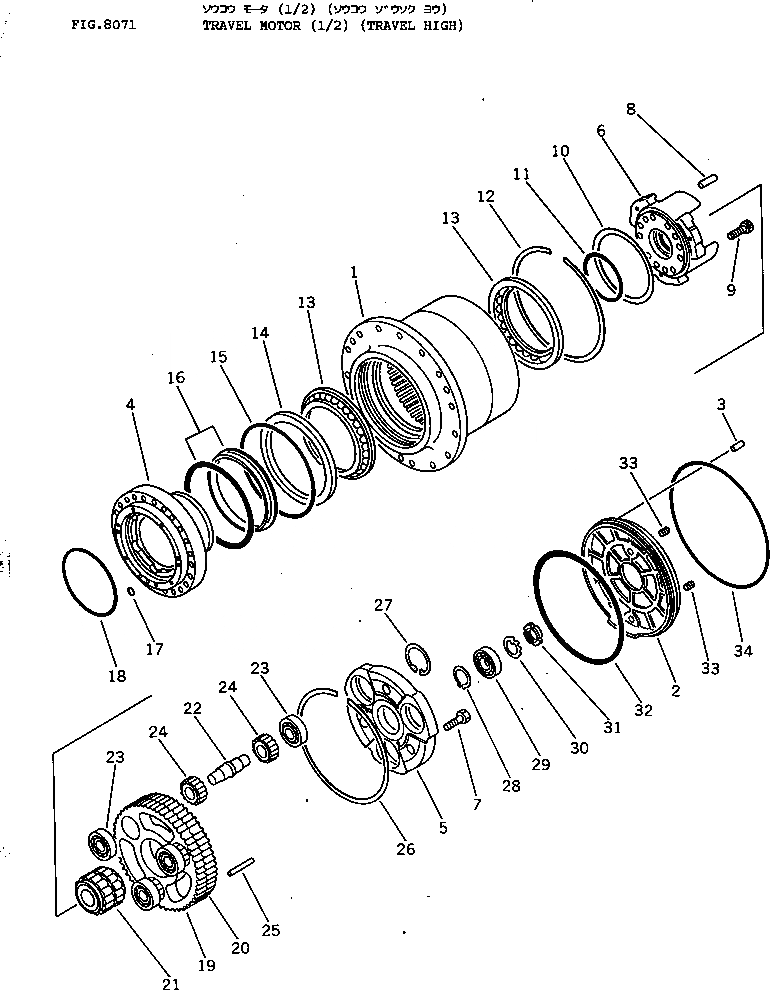

Запчасти Komatsu PC120-3 МОТОР ХОДА (/) (ХОД ВЫС.) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

203-60-00400

TRAVEL MOTOR ASS'Y

|$1

203-60-41900

TRAVEL MOTOR ASS'Y

|$3

TZ150A1103-00

HUB ASS'Y

1

HUB

2

COVER

3

PIN,DOWEL

|$7

SPINDLE ASS'Y

4

SPINDLE

5

FLANGE,HOLD

6

BOLT,REAMER

7

CARRIER

8

01252-31850

BOLT

9

TZ200A1015-00

PIN

10

TZ200A1013-0

PIECE,DISTANCE

11

TZROWG-13120

O-RING (KIT)

12

TZ150A1011-00

RING

13

TZ200A1021-1

BEARING,BALL

13

TZ200A1021-0

BEARING,BALL

14

TZ150A1010-00

PIECE,DISTANCE

15

07000-15260

O-RING (KIT)

16

TZR020923442

SEAL,FLOATING (KIT)

17

07000-11006

O-RING (KIT)

18

TZROWG-13183

O-RING (KIT)

|$24

TZ150A1102-00

GEAR ASS'Y

19

GEAR

20

GEAR

21

BEARING

22

SHAFT,CRANK

23

BEARING

24

BEARING

25

TZ150A1017-0

PIN

26

TZ150A1012-00

RING

27

TZ150A1020-0

RING,SNAP

28

TZSBR-04018

RING,SNAP

29

TZ150A1024-00

BEARING

30

TZ1555AW08

WASHER

31

TZ1554AN07

NUT

32

07000-15270

O-RING (KIT)

33

TZROHP00001-2

PLUG

34

TZ150A1018-0

RING
