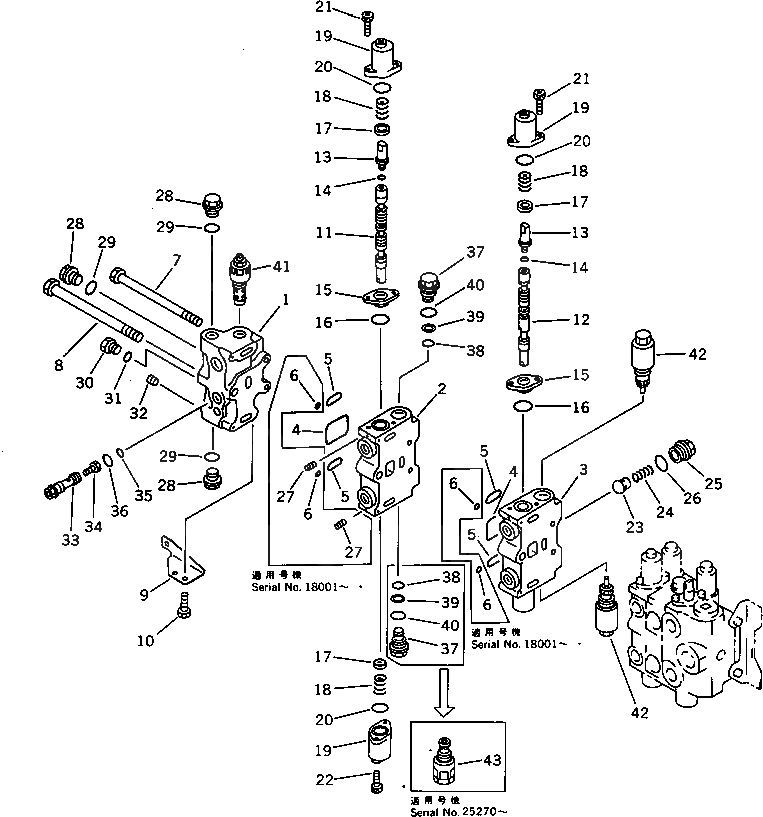

Запчасти Komatsu PC120-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
700-85-25002
CONTROL VALVE ASS'Y,R.H.
|$1
700-85-25001
CONTROL VALVE ASS'Y,R.H.
|$2
700-85-25000
CONTROL VALVE ASS'Y,R.H.
1
COVER,VALVE
1
COVER,VALVE
2
BLOCK,VALVE
2
BLOCK,VALVE
3
BLOCK,VALVE
3
BLOCK,VALVE
4
07000-13050
O-RING
5
07000-03038
O-RING
5
07000-03030
O-RING
6
07000-01007
O-RING
7
700-86-11112
BOLT
8
700-84-13220
BOLT
9
700-84-13480
BRACKET
10
01010-51020
BOLT
11
SPOOL,ARM
12
SPOOL,BOOM
13
700-84-13790
JOINT
14
07002-11223
O-RING
15
700-84-13490
PLATE
16
700-84-11240
O-RING
17
700-84-13781
RETAINER
18
700-84-13770
SPRING
19
700-84-12510
CASE
20
700-84-11240
O-RING
21
01253-30625
BOLT
22
01252-30616
BOLT
23
700-42-31460
VALVE
24
700-42-31470
SPRING
25
700-84-11320
PLUG
26
07002-13034
O-RING
27
706-86-51170
PLUG
28
700-22-11370
PLUG
29
07002-12434
O-RING
30
07040-11409
PLUG
31
07002-01423
O-RING
32
07043-70108
PLUG
|$40
700-84-13860
ORIFICE ASS'Y
33
700-84-13840
ORIFICE
34
700-84-13850
SENSOR
35
07000-02014
O-RING
36
07002-02434
O-RING
37
700-84-13960
PLUG
37
700-84-13960
PLUG
38
700-22-11410
O-RING
38
700-22-11410
O-RING
39
700-80-64220
RING,BACK-UP
39
700-80-64220
RING,BACK-UP
40
07002-03034
O-RING
40
07002-03034
O-RING
41
700-26-53000
VALVE ASS'Y
42
700-81-61002
VALVE ASS'Y,SUCTION AND SAFETY
42
700-81-61001
VALVE ASS'Y,SUCTION AND SAFETY
43
700-82-73000
SAFETY VALVE ASS'Y
Выбрано товаров: 56
