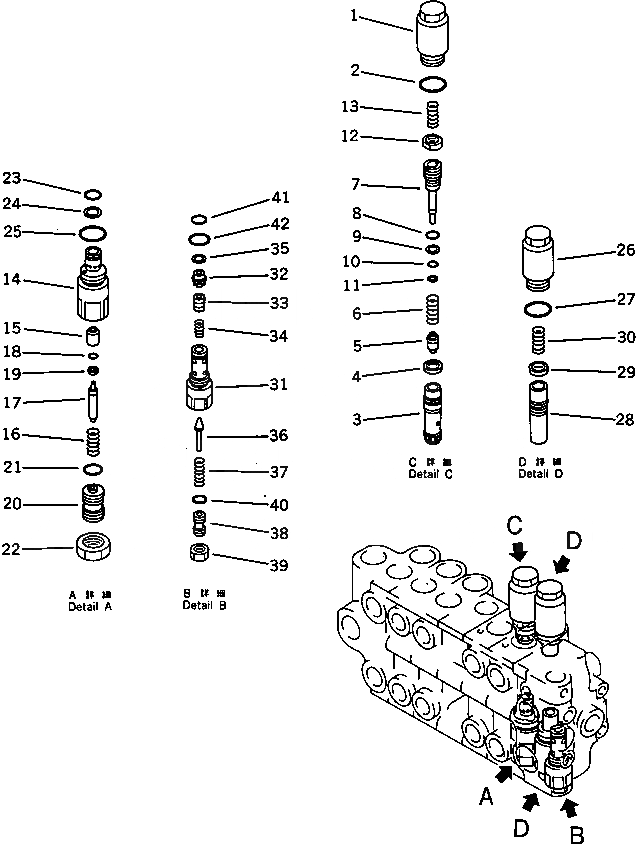

Запчасти Komatsu PC120-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-23005

CONTROL VALVE ASS'Y,L.H.

|$1

700-86-23004

CONTROL VALVE ASS'Y,L.H.

|$2

700-86-23003

CONTROL VALVE ASS'Y,L.H.

|$4

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

1

700-80-62310

SLEEVE

2

07002-03034

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

RING,BACK-UP

10

O-RING

11

SEAL

12

NUT

13

700-80-62250

SPRING

|$18

700-81-71001

SAFETY VALVE ASS'Y

14

SLEEVE

15

POPPET

16

SPRING

17

PISTON

18

O-RING

19

SEAL

20

SCREW

21

O-RING

22

NUT

23

700-22-11410

O-RING

24

700-80-64220

RING,BACK-UP

25

07002-03034

O-RING

|$31

700-81-81000

VALVE ASS'Y,SUCTION

26

SLEEVE

27

07002-03034

O-RING

28

VALVE

29

SEAL

30

700-80-62250

SPRING

|$37

700-26-53000

VALVE ASS'Y,RELIEF

31

SLEEVE

32

700-20-51540

RETAINER

33

VALVE

34

700-20-51610

SPRING

35

700-20-51550

RING,SNAP

36

700-80-61190

POPPET

37

700-20-51580

SPRING

38

700-20-51340

SCREW

39

01582-11411

NUT

40

07000-02011

O-RING

41

700-22-11410

O-RING

42

07002-02434

O-RING
