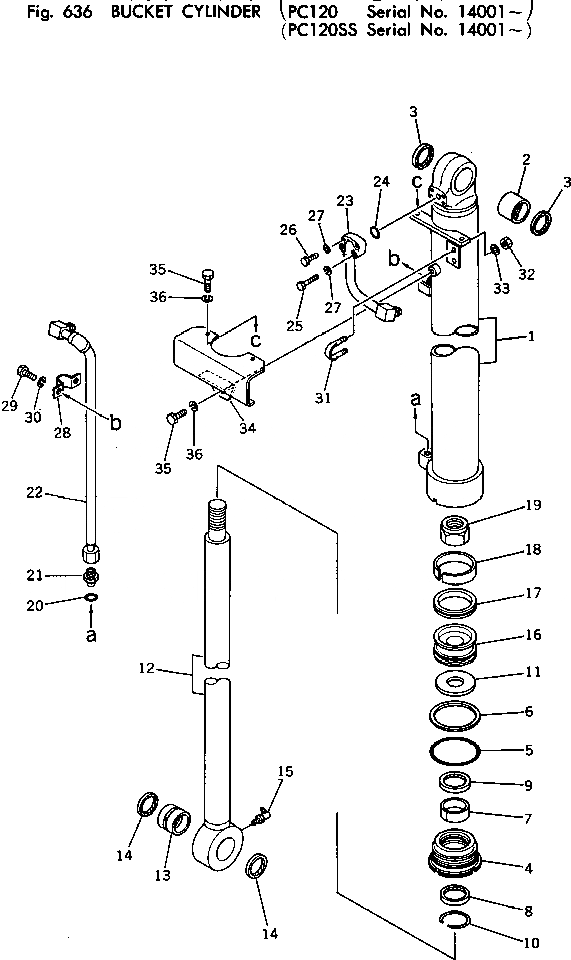

Запчасти Komatsu PC120-2 ЦИЛИНДР КОВША ГИДРАВЛИКА

|$0

203-63-72300

CYLINDER ASS'Y

1

203-63-72340

CYLINDER

2

202-63-26541

BUSHING

3

07145-00060

SEAL,DUST (KIT)

4

707-29-12491

HEAD,CYLINDER

5

07000-12125

O-RING (KIT)

6

111-63-81230

RING,BUCK-UP (KIT)

7

07177-07030

BUSHING

8

144-63-95170

SEAL,DUST (KIT)

9

707-51-70211

PACKING,ROD (KIT)

10

07179-00093

RING,SNAP

11

707-41-10110

RETAINER

12

203-63-72220

ROD,PISTON

13

202-63-72440

BUSHING

14

203-70-33210

SEAL,DUST (KIT)

15

07020-00900

FITTING

16

707-36-12290

PISTON

17

707-44-12080

RING,PISTON (KIT)

18

07155-01230

RING,WEAR (KIT)

19

07165-15252

NUT,NYLON

20

07002-12434

O-RING (KIT)

21

07230-10628

UNION

22

203-63-72360

TUBE

23

203-63-76271

TUBE

24

07000-13030

O-RING (KIT)

25

01010-50850

BOLT

26

01010-50835

BOLT

27

01602-20825

WASHER,SPRING

28

07282-02793

CLAMP

29

01010-51025

BOLT

30

01602-21030

WASHER,SPRING

31

07283-22738

CLIP

32

01599-01011

NUT

33

01643-31032

WASHER

34

203-63-76381

GUARD

35

01010-51025

BOLT

36

01602-21030

WASHER,SPRING
