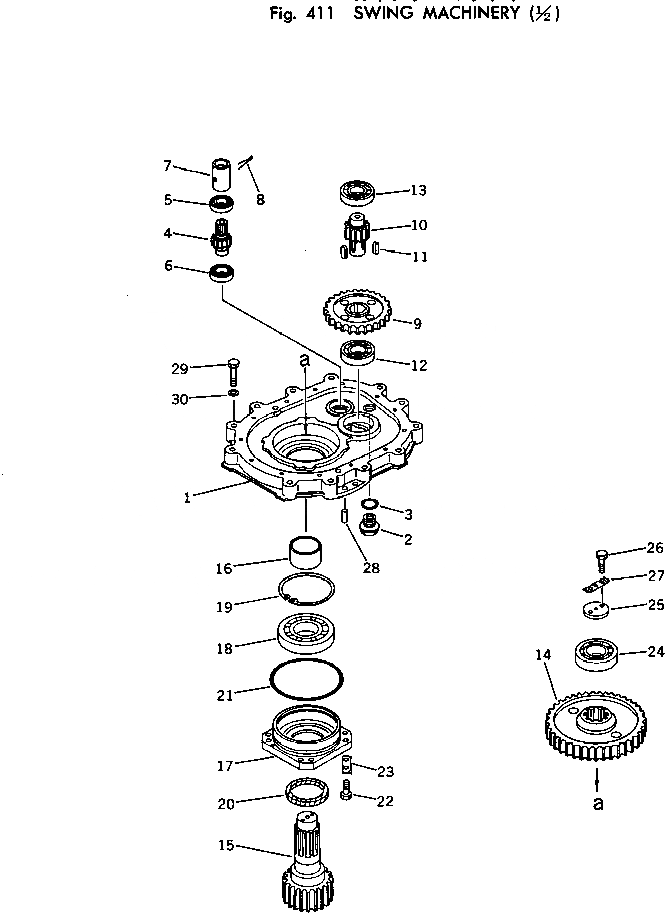

Запчасти Komatsu PC120-2 МЕХАНИЗМ ПОВОРОТА (/) ПОВОРОТН. СИСТЕМА

1

203-26-31210

CASE

2

07044-12412

PLUG

3

07002-02434

O-RING

4

203-26-11211

SHAFT, 11 TEETH,PINION

5

06044-00207

BEARING

6

06040-06207

BEARING

7

203-26-11220

COUPLING

8

04050-05055

PIN,COTTER

9

203-26-11321

GEAR

10

202-26-11310

SHAFT,PINION

11

202-27-11330

KEY

12

06040-06309

BEARING

13

06044-00309

BEARING

14

202-26-11420

GEAR

15

203-26-11412

SHAFT,PINION

16

203-26-11432

COLLAR

17

203-26-11442

CAGE

18

06030-22315

BEARING

19

04071-00160

RING,SNAP

20

07012-00095

SEAL,OIL

21

07000-05180

O-RING

22

01010-31235

BOLT

23

04081-06012

LOCK

24

202-09-15120

BEARING

25

202-26-11530

HOLDER

26

01010-31230

BOLT

27

202-26-11540

LOCK

28

04020-01638

PIN,DOWEL

29

01010-31680

BOLT

30

01643-31645

WASHER
