Запчасти Komatsu PC120-2 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

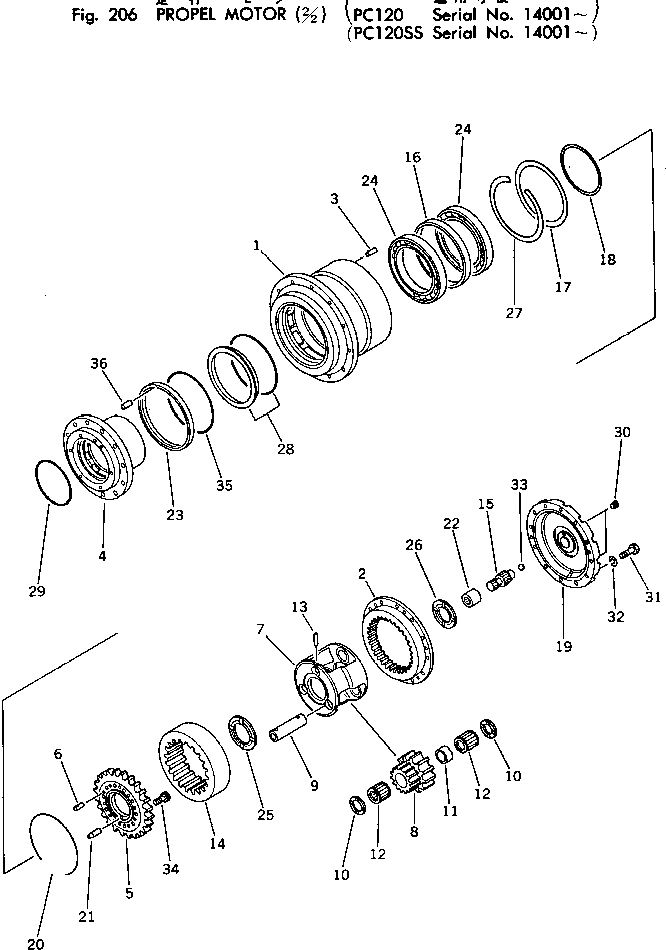

Схема запчастей Komatsu PC120-2 - PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

Артикул

Название

Примечание

Количество

|$0

203-60-00100

MOTOR ASS'Y,TRAVEL

|$2

TZ220F1101-00

HUB ASS'Y

1

HUB

2

GEAR,RING

3

PIN

|$6

TZ240F1102-00

SPINDLE ASS'Y

4

SPINDLE

5

GEAR

6

PIN

7

TZ220F1003-00

CARRIER

|$11

TZ220F1006-00

GEAR

8

GEAR

|$13

TZ220F1009-00

SHAFT ASS'Y

9

SHAFT ASS'Y

|$15

TZ220F1014-00

COLLAR

10

COLLAR

|$17

TZ220F1021-00

COLLAR

11

COLLAR

|$19

TZ220F1032-00

BEARING

12

BEARING

|$21

TZ220F1013-00

PIN ASS'Y

13

PIN

14

TZ220F1005-00

GEAR,RING

15

TZ220F1007-00

GEAR,SUN

16

TZ43E1010-00

COLLAR

17

TZ43E1011-00

PIECE,DISTANCE

18

TZ43E1012-00

PIECE,DISTANCE

19

TZ200F1013-00

COVER

20

TZ220F1015-00

RING

21

TZ43E1020-01

PIN

22

TZ220F1024-00

COUPLING

23

TZ10F1027-00

PIECE,DISTANCE

24

TZ200F1033-00

BEARING

25

TZ10F1030-00

BEARING,THRUST

26

TZ10F1031-00

METAL,THRUST

27

TZOBR25030

RING,SNAP

28

TZES209A00

SEAL,FLOATING (KIT)

29

TZOWG-13184

O-RING (KIT)

30

TZHP00001-2

PLUG

31

01010-31245

BOLT

32

TZSW001220

WASHER,LOCK

33

04260-00793

BALL

34

01252-31430

BOLT

35

TZOWG-13216

O-RING (KIT)

36

TZSP0050-10

PIN

Выбрано товаров: 45
