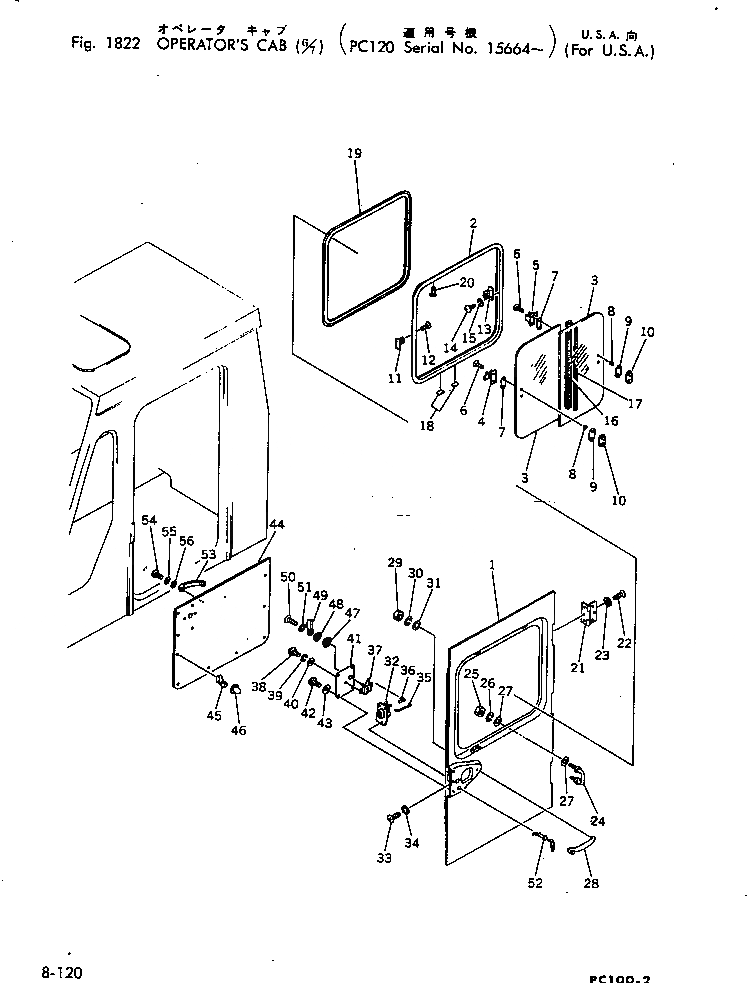

Запчасти Komatsu PC120-2 КАБИНА (/7) (ДЛЯ США)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

203-54-00210

OPERATOR'S CAB

|$2

203-54-00140

DOOR ASS'Y

1

205-54-61121

DOOR

|$4

203-54-33700

SASH ASS'Y

2

205-54-63670

SASH

3

205-54-64890

GLASS

4

205-54-53160

LOCK,FRONT SIDE

5

205-54-53150

LOCK,REAR SIDE

6

01225-40408

SCREW

7

205-54-53260

PACKING

8

205-54-53270

PACKING

9

205-54-53250

PACKING

10

205-54-53170

RETAINER

11

205-54-53190

CATCH,FRONT SIDE

12

01224-40408

SCREW

13

205-54-53180

CATCH,REAR SIDE

14

01220-40408

SCREW

15

01601-20410

WASHER,SPRING

16

205-54-53110

SASH

17

205-54-53120

STRIP,WEATHER

18

205-54-53280

PROOF,DUST

19

205-54-51751

SEAL

20

01224-40408

SCREW

21

205-54-51180

HINGE ASS'Y

22

01224-40830

SCREW

23

205-54-53730

WASHER,LOCK

24

205-54-61161

BOLT

25

01580-01008

NUT

26

01602-01030

WASHER,SPRING

27

01643-31032

WASHER

28

205-54-51270

HANDLE

29

01580-00504

NUT

30

01601-00513

WASHER,SPRING

31

01641-00508

WASHER

32

566-54-24421

LOCK ASS'Y

33

01224-40612

SCREW

34

205-54-53720

WASHER,LOCK

35

566-54-24830

ROD

36

566-54-24840

SNAP

37

205-54-53430

CONTROL,REMOTE

38

01220-30612

SCREW

39

01602-00619

WASHER,SPRING

40

01642-00608

WASHER

41

205-54-51191

COVER

42

205-54-53630

SCREW

43

01641-00508

WASHER

44

203-54-33580

COVER

45

205-54-51560

CLIP

46

205-54-51570

GROMMET

47

566-54-24260

BASE

48

566-54-24270

ESCUTCHEON

49

566-54-24550

HANDLE

50

01225-40516

SCREW

51

205-54-53710

WASHER,LOCK

52

566-54-24441

KEY ASS'Y

53

205-54-51590

HANDLE

54

01220-40625

SCREW

55

01602-20619

WASHER,SPRING

56

01641-20608

WASHER
