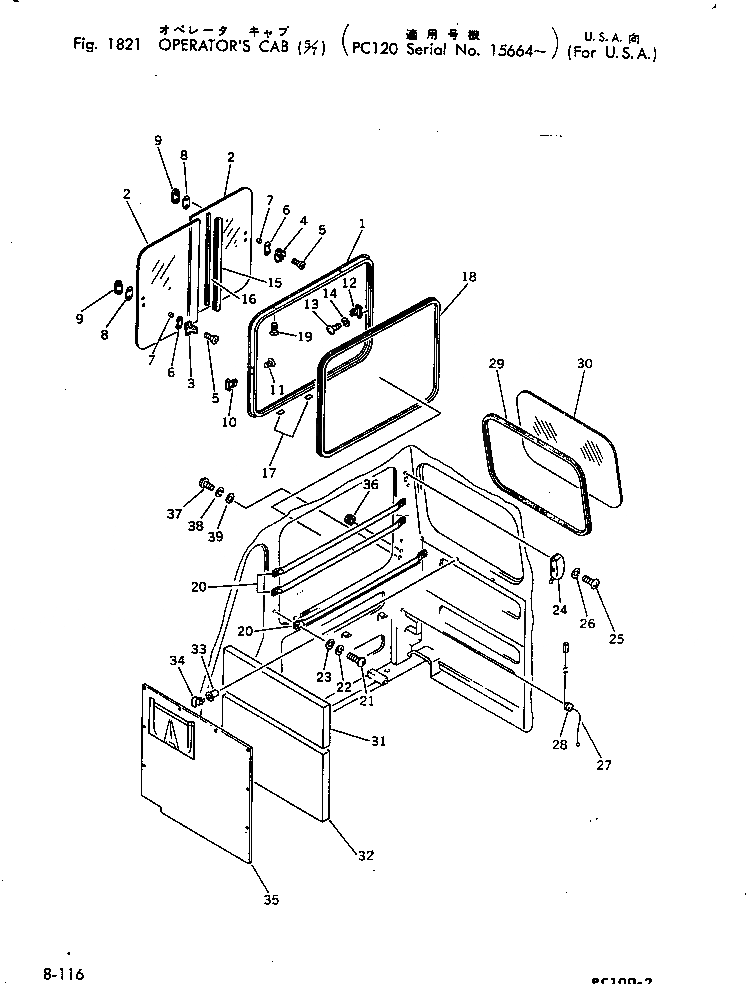

Запчасти Komatsu PC120-2 КАБИНА (/7) (ДЛЯ США)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

203-54-00210

OPERATOR'S CAB

|$2

203-54-33600

SASH ASS'Y

1

205-54-63660

SASH

2

205-54-64880

GLASS

3

205-54-53320

LOCK ASS'Y,FRONT SIDE

4

205-54-53310

LOCK ASS'Y,REAR SIDE

5

01225-40408

SCREW

6

205-54-53260

PACKING

7

205-54-53270

PACKING

8

205-54-53250

PACKING

9

205-54-53170

RETAINER

10

205-54-53190

CATCH,FRONT SIDE

11

01224-40408

SCREW

12

205-54-53180

CATCH,REAR SIDE

13

01220-40408

SCREW

14

01601-20410

WASHER,SPRING

15

205-54-53210

SASH

16

205-54-53220

STRIP,WEATHER

17

205-54-53280

PROOF,DUST

18

205-54-61461

SEAL

19

01224-40408

SCREW

20

205-54-61291

GUARD

21

01220-40616

SCREW

22

01602-20619

WASHER,SPRING

23

01641-20608

WASHER

24

205-06-62360

LAMP ASS'Y,ROOM

24

08110-12410

BULB, 12W

25

01220-40512

SCREW

26

01601-20513

WASHER,SPRING

27

205-06-62710

WIRE

28

08037-01008

GROMMET

29

205-54-63390

SEAL

30

205-54-64870

GLASS

31

205-54-63520

WOOL

32

205-54-63510

WOOL

33

205-54-51570

GROMMET

34

205-54-51560

CLIP

35

205-54-61422

PAD

36

09415-00706

CAP

37

01220-40410

SCREW

38

01601-20410

WASHER,SPRING

39

01641-20405

WASHER
