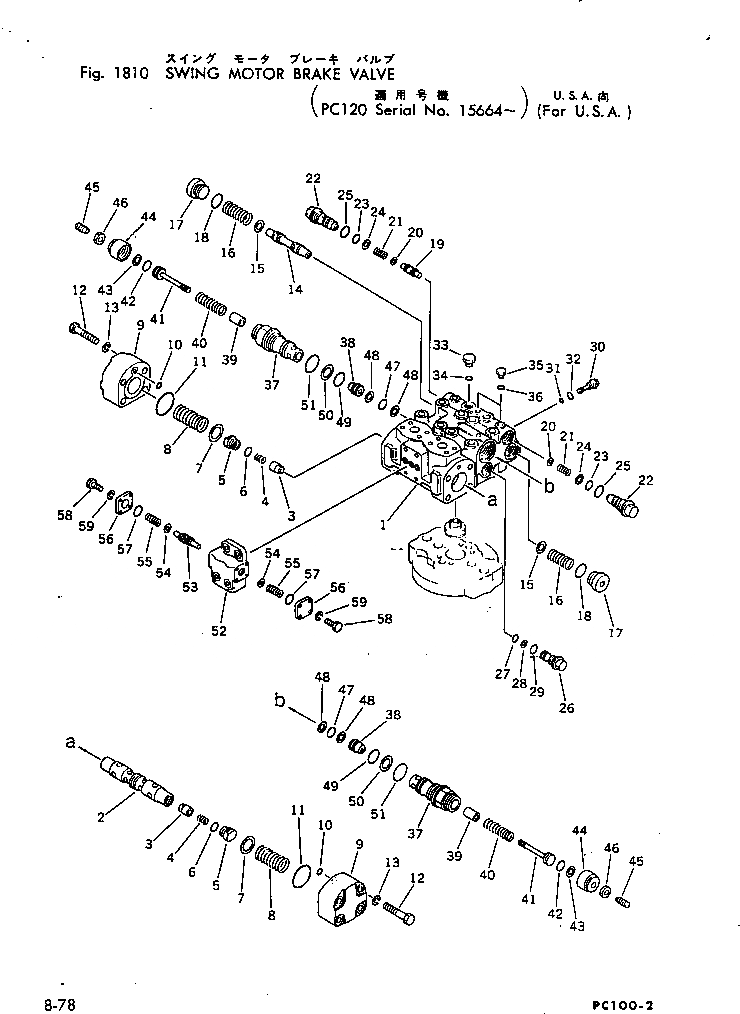

Запчасти Komatsu PC120-2 МОТОР ПОВОРОТА ТОРМОЗНОЙ КЛАПАН (ДЛЯ США)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ
№
Артикул
Название
Примечание
Количество
|$0
706-75-06900
SWING MOTOR ASS'Y
|$2
706-75-72600
BRAKE VALVE ASS'Y
1
BODY,VALVE
2
SPOOL
3
706-75-71320
VALVE
4
700-42-31210
SPRING
5
706-75-73160
PLUG
6
07002-12034
O-RING
7
706-75-73170
RING
8
706-75-73220
SPRING
9
706-75-73211
COVER
10
07000-12010
O-RING
11
07000-13050
O-RING
12
01010-51265
BOLT
13
01602-21236
WASHER,SPRING
14
SPOOL
15
706-73-71360
PLATE
16
706-73-71380
SPRING
17
07040-13016
PLUG
18
07002-13034
O-RING
19
SPOOL
20
706-73-77140
PLATE
21
706-75-77150
SPRING
22
706-75-71410
PLUG
23
07000-12016
O-RING
24
07001-02016
RING,BACK-UP
25
07002-12434
O-RING
26
706-73-71460
PLUG
27
07000-12012
O-RING
28
07001-02012
RING,BACK-UP
29
07002-12034
O-RING
30
706-75-71390
ORIFICE
31
07000-01005
O-RING
32
07002-01223
O-RING
33
07040-11409
PLUG
34
07002-11423
O-RING
35
07040-10807
PLUG
36
07002-10823
O-RING
|$39
706-75-76101
RELIEF VALVE
37
SLEEVE
38
SEAT
39
VALVE
40
SPRING
41
PISTON
42
O-RING
43
RING,BACK-UP
44
PLUG
45
SCREW
46
NUT
47
07000-22018
O-RING
48
07001-02018
RING,BACK-UP
49
07000-13025
O-RING
50
07001-03025
RING,BACK-UP
51
07002-13634
O-RING
|$55
706-75-77400
SHUTTLE VALVE ASS'Y
52
BODY
53
SPOOL
54
706-73-77140
PLATE
55
706-75-77150
SPRING
56
706-75-72750
PLATE
57
07000-12021
O-RING
58
01010-60618
BOLT
59
01602-20619
WASHER,SPRING
Выбрано товаров: 63
