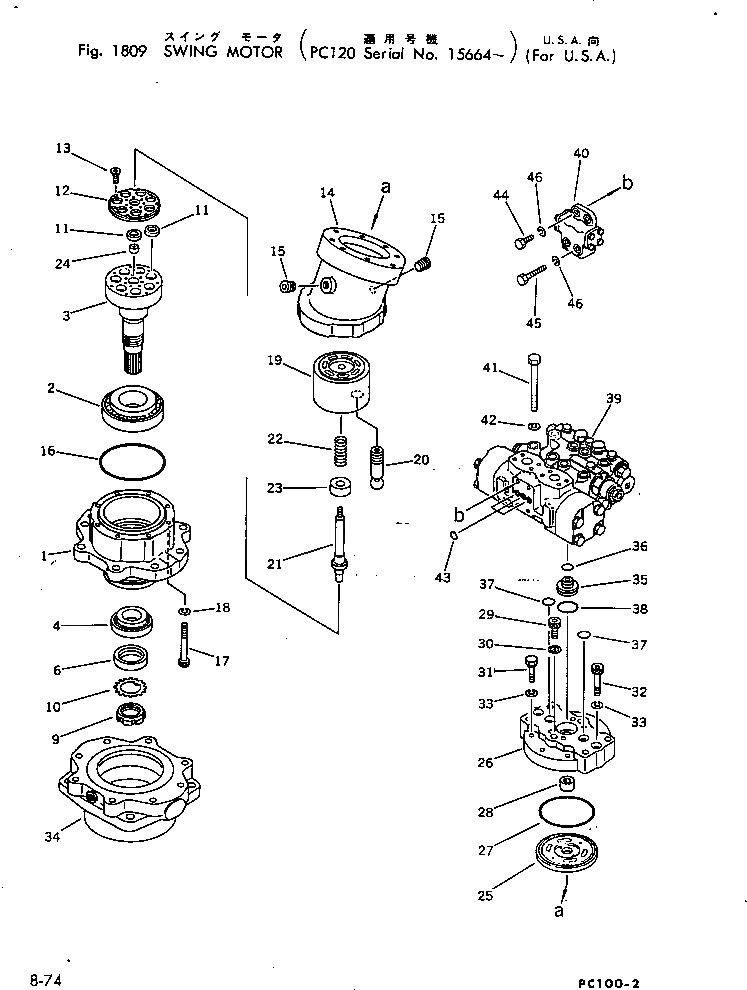

Запчасти Komatsu PC120-2 МОТОР ПОВОРОТА (ДЛЯ США)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ

|$0

706-75-06900

SWING MOTOR ASS'Y

|$2

706-75-44000

MOTOR ASS'Y,SWING

1

COVER

2

BEARING

3

SHAFT,DRIVE

4

BEARING

6

RING

9

NUT

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

14

PLATE

15

706-75-40360

BOLT

16

O-RING

17

BOLT

18

WASHER,SPRING

19

BLOCK,CYLINDER

20

PISTON SUB ASS'Y

21

SHAFT,CENTER

22

SPRING

23

RING,CENTER

24

BALL,CENTER

25

PLATE,VALVE

26

COVER,END

27

O-RING

28

BEARING

29

BOLT

30

GASKET,SEAL

31

BOLT

32

BOLT

33

WASHER,SPRING

34

706-75-95000

PARKING BRAKE ASS'Y

35

706-75-73260

CAP

36

07000-02018

O-RING

37

07000-13032

O-RING

38

07000-03035

O-RING

39

706-75-72600

BRAKE VALVE ASS'Y

40

706-75-77400

SHUTTLE VALVE ASS'Y

41

01011-51230

BOLT

42

01602-21236

WASHER,SPRING

43

07000-12010

O-RING

44

01010-50825

BOLT

45

01010-50850

BOLT

46

01602-20826

WASHER,SPRING
