Артикул
Название
Примечание
Количество
|1
700-84-24004
VALVE ASS'Y
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.621¤ 623 AND 624.
|1
700-83-18004
VALVE ASS'Y
|$$4
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.622¤ 623 AND 625.
|1
700-82-53000

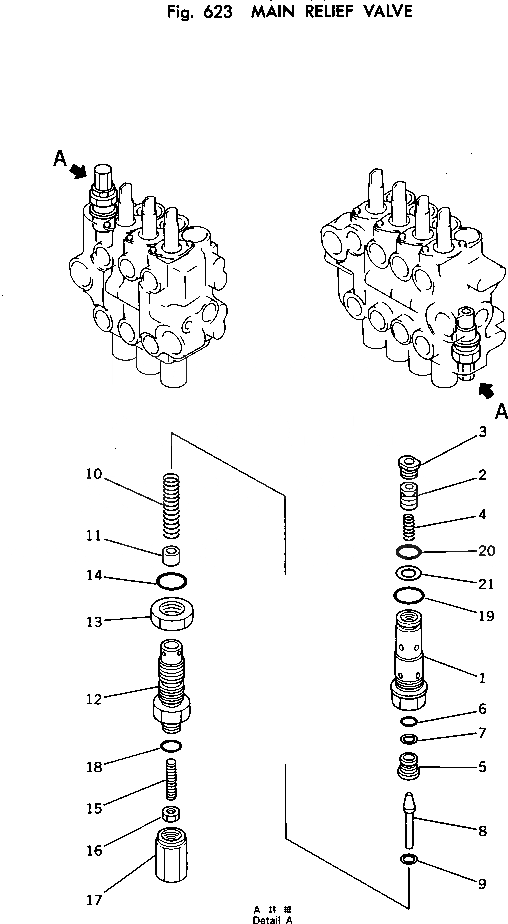

MAIN RELIEF VALVE A.
1
SLEEVE
2
VALVE
3
700-10-51230
PLUG
4
700-22-11540
SPRING
5
700-80-51170
SEAT
6
07000-22012
O-RING
7
07001-02012
RING,BACK-UP
8
700-80-61190
POPPET
9
700-80-51240
SPACER
10
700-80-51130
SPRING
11
700-80-51230
RETAINER
12
700-80-51320
HOLDER
13
07239-12410
NUT
14
07002-02434
O-RING
15
700-10-51211
SCREW,ADJUST
16
01580-00605
NUT
17
700-10-51220
COVER
18
07002-01423
O-RING
19
07002-03334
O-RING
20
700-13-31161
O-RING
21
700-80-51190
RING,BACK-UP
Выбрано товаров: 26
