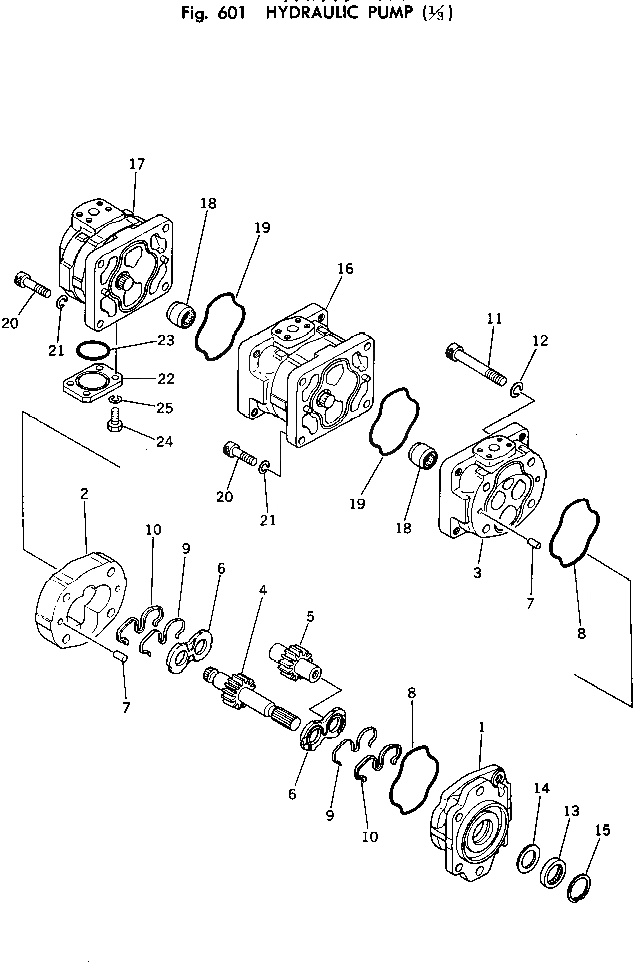

Запчасти Komatsu PC120-2 ГИДР. НАСОС. (/) ГИДРАВЛИКА

|1

705-56-34000

PUMP ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.601 TO 603.

|1

705-22-35210

PUMP ASS'Y

1

BRACKET

2

CASE,GEAR

3

CARRIER

4

GEAR,DRIVE

5

GEAR,DRIVEN

6

PLATE,SIDE

7

PIN,DOWEL

8

O-RING

9

RING,BACK-UP

10

SEAL

11

BOLT

12

WASHER,SPRING

13

705-17-03810

SEAL,OIL

14

705-17-03870

PLATE

15

04065-05220

RING,SNAP

16

705-12-35330

PUMP ASS'Y

17

705-16-28530

PUMP ASS'Y

18

705-17-03330

COUPLING

19

705-17-03380

O-RING

20

705-17-03370

BOLT

21

01602-21442

WASHER,SPRING

22

705-17-03880

PLATE

23

07000-02055

O-RING

24

01010-51230

BOLT

25

01602-21236

WASHER,SPRING
