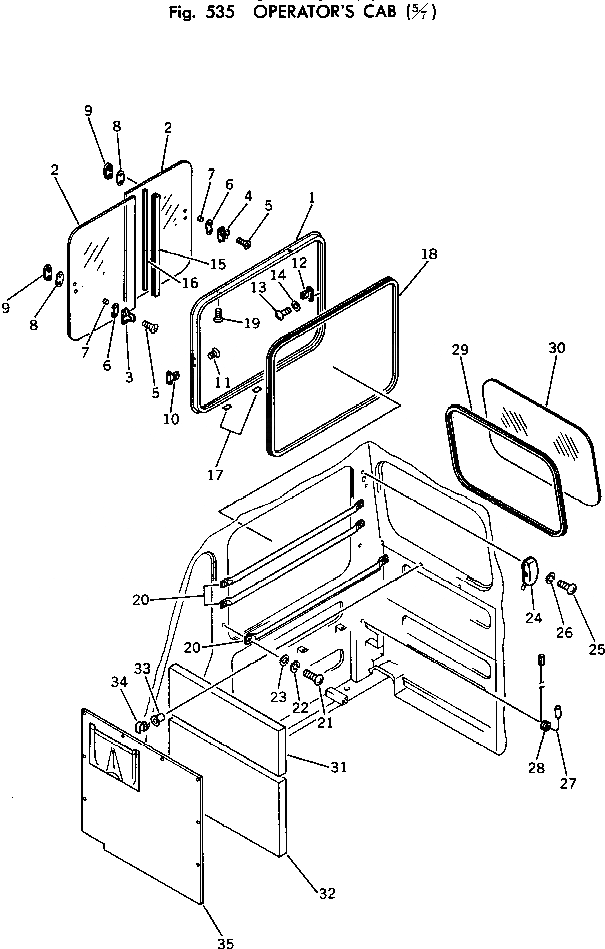

Запчасти Komatsu PC120-2 КАБИНА (/7) ОСНОВНАЯ РАМА И КАБИНА

|1

203-54-00112

OPERATOR'S CAB ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.531 TO 536.

|1

205-54-61601

SASH ASS'Y

1

205-54-63660

SASH

2

205-54-61611

GLASS

3

205-54-53320

LOCK ASS'Y,FRONT SIDE

4

205-54-53310

LOCK ASS'Y,REAR SIDE

5

01225-40408

SCREW

6

205-54-53260

PACKING

7

205-54-53270

PACKING

8

205-54-53250

PACKING

9

205-54-53170

RETAINER

10

205-54-53190

CATCH,FRONT SIDE

11

01224-40408

SCREW

12

205-54-53180

CATCH,REAR SIDE

13

01220-40408

SCREW

14

01601-20410

WASHER,SPRING

15

205-54-53210

SASH

16

205-54-53220

STRIP

17

205-54-53280

PROOF

18

205-54-61461

SEAL

19

01224-40408

SCREW

20

205-54-61291

GUARD

21

01220-40616

SCREW

22

01602-20619

WASHER,SPRING

23

01641-20608

WASHER

24

205-06-62360

LAMP ASS'Y,ROOM

|24

08110-12410

BULB¤ 12W

25

01220-40512

SCREW

26

01601-20513

WASHER,SPRING

27

205-06-51270

WIRE

28

08037-01008

GROMMET

29

205-54-63390

SEAL

30

205-54-61331

GLASS

31

205-54-63520

WOOL,GLASS

32

205-54-63510

WOOL,GLASS

33

205-54-51570

GROMMET

34

205-54-51560

CLIP

35

205-54-61422

PAD
