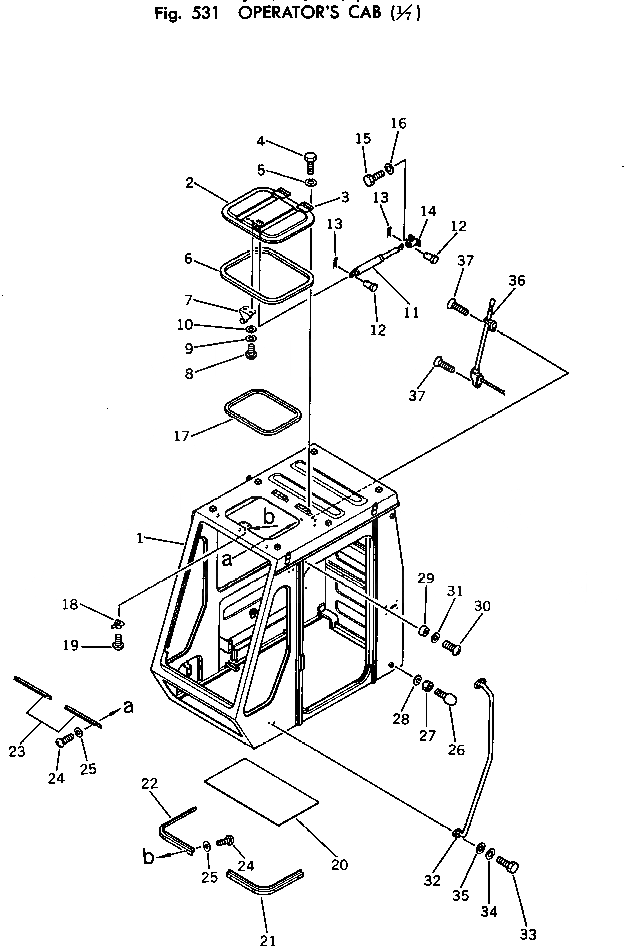

Запчасти Komatsu PC120-2 КАБИНА (/7) ОСНОВНАЯ РАМА И КАБИНА

|1

203-54-00112

OPERATOR'S CAB ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.531 TO 536.

1

205-54-63102

CABIN

2

205-54-61231

COVER

3

205-54-63490

HINGE (WELDED)

4

01010-30612

BOLT

5

01602-00619

WASHER,SPRING

6

205-54-61491

SEAL

7

205-54-63630

HOOK

8

01220-40412

SCREW

9

01601-20410

WASHER,SPRING

10

01642-20405

WASHER

11

205-54-63650

GAS SPRING ASS'Y

12

04205-10825

PIN

13

04050-12012

PIN,COTTER

14

205-54-63640

BRACKET

15

01010-50820

BOLT

16

01602-20825

WASHER,SPRING

17

205-54-61541

FINISHER,EDGE

18

203-54-11290

CATCHER

19

01224-40410

SCREW

20

205-54-63930

SEAT

21

205-54-63611

FINISHER,L.H.

22

205-54-63621

FINISHER,R.H.

23

205-54-63950

FINISHER

24

01370-00412

SCREW

25

01641-20405

WASHER

26

205-54-63460

STOPPER

27

01580-00806

NUT

28

01602-00825

WASHER,SPRING

29

205-54-51960

CUSHION

30

01370-00412

SCREW

31

01641-20405

WASHER

32

205-54-63350

HANDLE

33

01010-30825

BOLT

34

01602-00825

WASHER,SPRING

35

01641-00812

WASHER

36

205-06-62350

ANTENNA ASS'Y

37

01225-40425

SCREW
