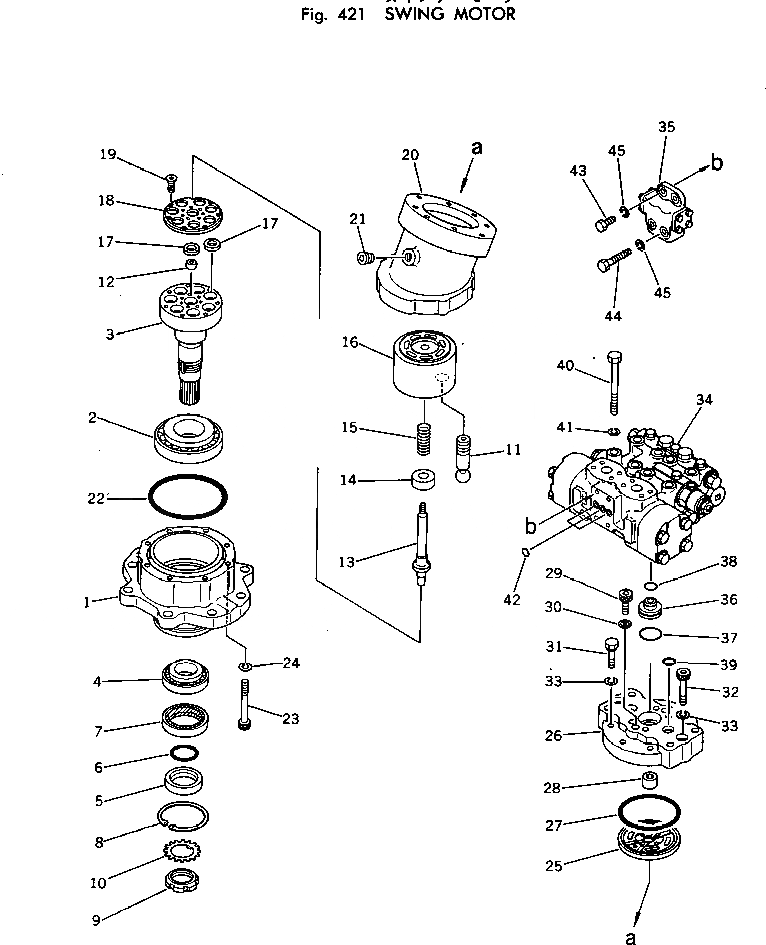

Запчасти Komatsu PC120-2 МОТОР ПОВОРОТА ПОВОРОТН. СИСТЕМА

|1

706-75-07700

SWING MOTOR ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.421 AND 425.

|1

706-75-42003

MOTOR ASS'Y

1

COVER

2

BEARING

3

SHAFT,SHAFT

4

BEARING

5

RING

6

O-RING

7

SEAL,OIL

8

RING,SNAP

9

NUT

10

WASHER,LOCK

11

PISTON ASS'Y

12

BALL

13

SHAFT

14

RING

15

SPRING

16

BLOCK,CYLINDER

17

HOLDER

18

RETAINER

19

SCREW

20

PLATE,PUMP

21

706-73-40360

PLUG

22

O-RING

23

BOLT

24

WASHER,SPRING

25

PLATE,VALVE

26

COVER

27

O-RING

28

BEARING

29

BOLT

30

GASKET

31

BOLT

32

BOLT

33

WASHER,SPRING

34

706-75-72600

BRAKE VALVE ASS'Y

35

706-75-77400

SHUTTLE VALVE ASS'Y

36

706-75-73260

CAP

37

07000-03035

O-RING

38

07000-02018

O-RING

39

07000-13032

O-RING

40

01011-51230

BOLT

41

01602-21236

WASHER,SPRING

42

07000-12010

O-RING

43

01010-50825

BOLT

44

01010-50850

BOLT

45

01602-20826

WASHER,SPRING
