Запчасти Komatsu PC120-2 -СЕКЦ. УПРАВЛЯЮЩ. КЛАПАН(/) ОПЦИОННЫЕ КОМПОНЕНТЫ

|1

700-21-45000

VALVE ASS'Y

|$$2

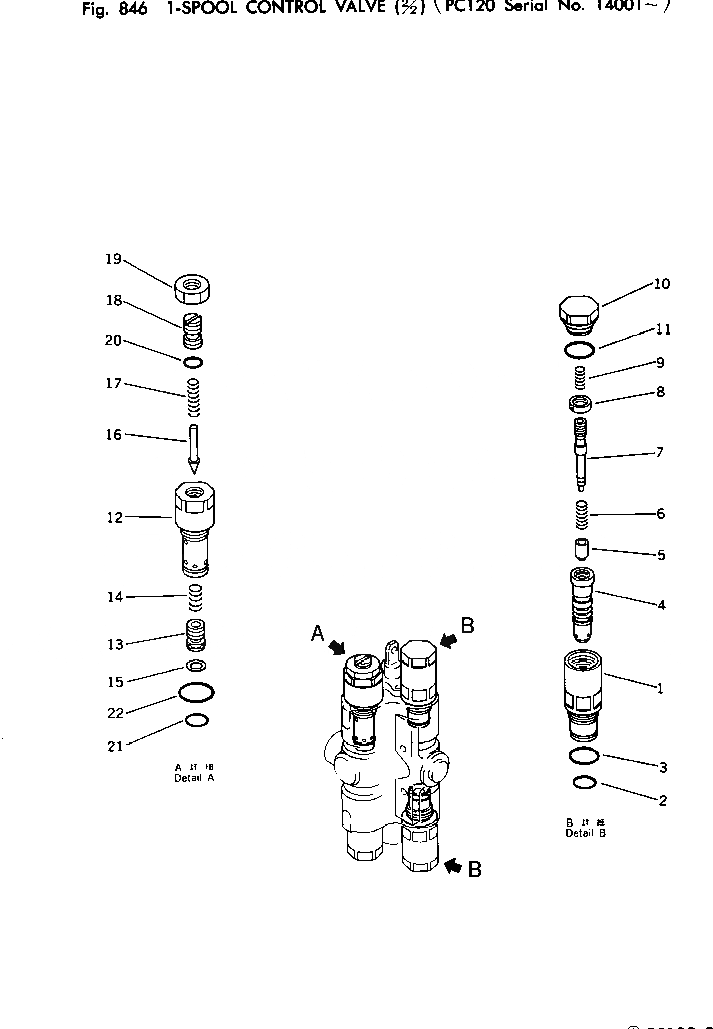

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.845 AND 846.

|1

700-20-66001

VALVE ASS'Y,SUCTION AND SAFETY

1

SLEEVE

2

07000-12014

O-RING

3

07002-02434

O-RING

4

VALVE

5

POPPET

6

SPRING

7

PISTON

8

NUT

9

SPRING

10

PLUG

11

O-RING

|12

700-20-54001

VALVE ASS'Y,RELIEF

12

SLEEVE

13

VALVE

14

700-20-51430

SPRING

15

700-20-51240

RING

16

POPPET

17

700-20-51350

SPRING

18

700-20-51340

SCREW

19

01583-11408

NUT

20

07000-02011

O-RING

21

700-22-11410

O-RING

22

07002-02434

O-RING
