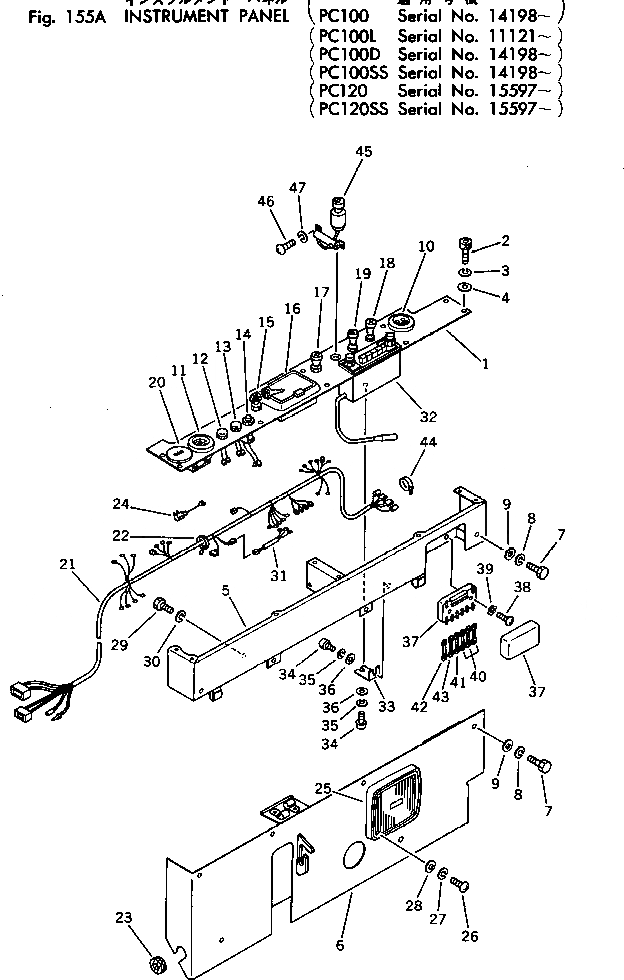

Запчасти Komatsu PC120-2 ПАНЕЛЬ ПРИБОРОВ(№97-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

203-06-32110

PANEL

2

205-06-62170

BOLT

3

205-06-62180

WASHER,SPRING

4

205-06-62190

WASHER

5

20X-06-11121

COVER

6

203-06-31124

COVER

7

01010-30820

BOLT

8

01602-00825

WASHER,SPRING

9

01643-30823

WASHER

10

08687-22402

METER,SERVICE

11

203-06-21131

GAUGE,WATER TEMPERATURE

12

125-06-22210

LAMP,CAUTION¤ OIL PRESSURE

|12

08111-02430

BULB¤ 3W

13

125-06-22220

LAMP,CAUTION¤ CHARGE

|13

08111-02430

BULB¤ 3W

14

600-815-2371

SIGNAL,HEATER

15

201-06-21510

SWITCH,STARTING

16

566-06-16411

ASHTRAY

17

08061-40010

SWITCH,LAMP

18

08183-00000

SWITCH,WIPER

19

09481-02400

SWITCH,HEATER

20

09414-00053

CAP

21

203-06-31156

WIRE ASS'Y

22

08034-00414

BAND

23

08037-02512

GROMMET

24

205-06-51290

CONDENSER

25

203-06-31410

SPEAKER

26

01220-30420

SCREW

27

01601-00410

WASHER,SPRING

28

01641-00405

WASHER

29

01010-30612

BOLT

30

01602-00619

WASHER,SPRING

31

205-06-61290

WIRE ASS'Y

32

201-06-21480

RADIO

33

205-06-62280

BRACKET

34

01220-30512

SCREW

35

01601-00513

WASHER,SPRING

36

01641-00508

WASHER

37

175-06-35430

BOX,FUSE

38

01220-30616

SCREW

39

01611-06063

WASHER

40

175-06-35420

FUSE¤ 10A

41

175-06-35410

FUSE¤ 20A

42

175-06-35390

FUSE¤ 30A

43

175-06-35380

FUSE¤ 40A

44

08034-00519

BAND

45

195-822-6151

LIGHTER,CIGARETTE

46

01220-30412

SCREW

47

01601-00410

WASHER,SPRING
