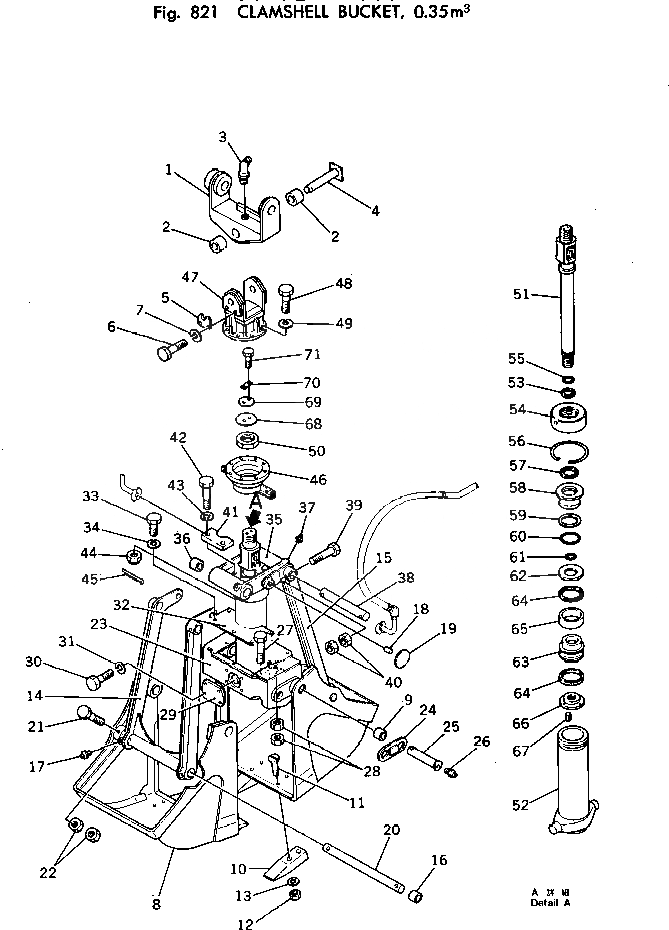

Запчасти Komatsu PC120-2 ГРЕЙФЕРН. КОВШ¤ .M ОПЦИОННЫЕ КОМПОНЕНТЫ
№
Артикул
Название
Примечание
Количество
|1
202-931-0020
CLAMSHELL A. 0.35M3
|1
202-931-0030
HANGER ASS'Y
1
HANGER
2
07143-10505
BUSHING
3
07020-00675
FITTING,GREASE
4
202-931-4110
PIN
5
202-931-4120
PLATE,LOCK
6
01010-31230
BOLT
7
01602-01236
WASHER,SPRING
|8
202-931-0040
BUCKET ASS'Y,CLAMSHELL
|8
202-931-0050
BODY ASS'Y
8
SHELL
9
07143-10505
BUSHING
10
202-931-1180
TOOTH
11
02090-01275
BOLT
12
02290-01219
NUT
13
01602-01957
WASHER,SPRING
|14
202-931-0080
ARM ASS'Y,L.H.
|14
202-931-0090
ARM ASS'Y,R.H.
14
ARM,L.H.
15
ARM,R.H.
16
07144-10505
BUSHING
17
07020-00000
FITTING,GREASE
18
202-931-1170
PIN
19
202-931-1370
PLATE (WELDED)
20
202-931-1220
PIN
21
01011-31610
BOLT
22
01580-01613
NUT
23
202-931-1230
FRAME
24
202-931-1240
PLATE,LOCK
25
202-931-1250
PIN
26
07020-00000
FITTING,GREASE
27
01011-31620
BOLT
28
01580-01613
NUT
29
202-931-1260
HOUSING
30
01010-31435
BOLT
31
01602-01442
WASHER,SPRING
32
202-931-1270
COVER
33
01010-31020
BOLT
34
01602-01030
WASHER,SPRING
|35
202-931-0060
FRAME ASS'Y
35
FRAME
36
07144-10505
BUSHING
37
07020-00000
FITTING,GREASE
38
202-931-1290
PIN
39
01011-31620
BOLT
40
01580-01613
NUT
41
202-931-1310
PLATE
42
01012-62495
BOLT
43
01643-32460
WASHER
44
01590-02427
NUT
45
04050-05040
PIN,COTTER
46
202-931-1320
JOINT
47
202-931-1330
BRACKET
48
01010-31645
BOLT
49
01602-01648
WASHER,SPRING
|50
202-931-0070
CYLINDER ASS'Y
50
202-931-2010
NUT
51
292-931-2021
ROD
52
202-931-2030
CYLINDER
53
07016-00708
SEAL,DUST
54
202-931-2040
CAP
55
07179-00093
RING,SNAP
56
202-931-2080
RING,SNAP
57
154-63-42373
PACKING
58
202-931-2110
SLEEVE
59
07146-02136
RING,BACK-UP
60
07000-12135
O-RING
61
07000-12060
O-RING
62
202-931-2170
HOLDER
63
202-931-2120
PISTON
64
145-63-32471
PACKING
65
07155-01435
RING,WEAR
66
202-931-2160
NUT,HOLDER
67
01320-30612
SCREW,SET
68
202-931-1360
PLATE
69
202-931-1350
PLATE
70
202-931-1340
PLATE
71
01010-31230
BOLT
Выбрано товаров: 79
