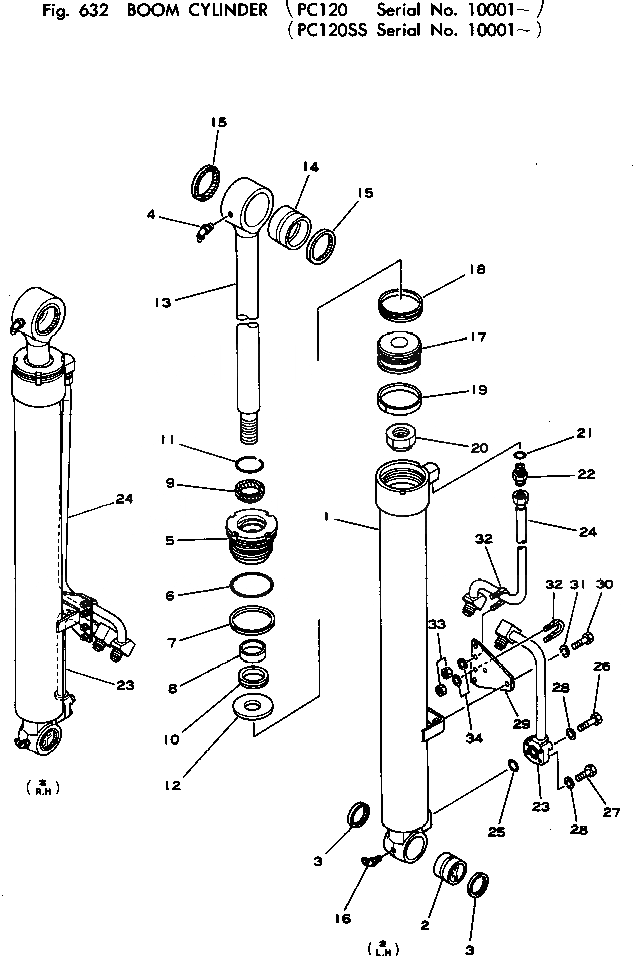

Запчасти Komatsu PC120-1 ЦИЛИНДР СТРЕЛЫ ГИДРАВЛИКА

|$0

203-63-52300

CYLINDER ASS'Y,L.H.

|$1

203-63-52400

CYLINDER ASS'Y,R.H.

1

203-63-52340

CYLINDER

2

203-63-76580

BUSHING

3

07145-00060

SEAL,DUST

4

07020-00675

FITTING

5

707-29-12491

HEAD,CYLINDER

6

07000-12125

O-RING

7

111-63-81230

RING,BACK-UP

8

07177-07030

BUSHING

9

144-63-95170

SEAL,DUST

10

707-51-70211

PACKING,ROD

11

07179-00093

RING,SNAP

12

707-41-10110

RETAINER

13

203-63-52320

ROD,PISTON

14

202-63-46440

BUSHING

15

07145-00085

SEAL,DUST

16

07020-00675

FITTING

17

707-36-12290

PISTON

18

707-44-12080

RING,PISTON

19

07155-01230

RING,WEAR

20

07165-15252

NUT,NYLON

21

07002-12434

O-RING

22

07230-10628

UNION

23

203-63-52270

TUBE,L.H.

23

203-63-52370

TUBE,R.H.

24

203-63-52261

TUBE,L.H.

24

203-63-52361

TUBE,R.H.

25

07000-13030

O-RING

26

01010-50850

BOLT

27

01010-50835

BOLT

28

01602-20825

WASHER

29

203-63-52280

PLATE

30

01010-51025

BOLT

31

01602-21030

WASHER

32

07283-22738

CLIP

33

01599-01011

NUT

34

01643-31032

WASHER
