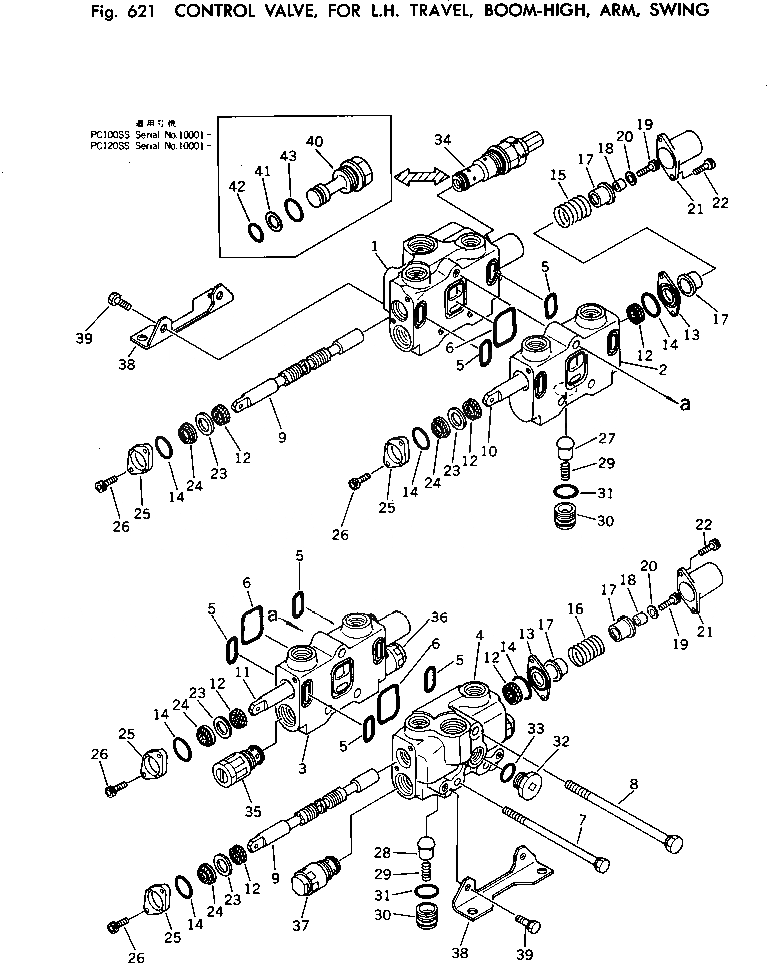

Запчасти Komatsu PC120-1 УПРАВЛЯЮЩ. КЛАПАН¤ ДЛЯ ЛЕВ. ХОД¤ СТРЕЛА-ВЫС.¤ РУКОЯТЬ¤ ПОВОРОТН. ГИДРАВЛИКА

|$0

700-84-24003

VALVE ASS'Y,(PC120)

|$1

700-84-24002

VALVE ASS'Y,(PC120)

|$2

700-84-44000

VALVE ASS'Y,(PC120SS)

1

BODY,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

COVER,VALVE

5

07000-03030

O-RING

6

07000-13050

O-RING

7

700-84-11172

BOLT

8

700-84-11182

BOLT

9

SPOOL,L.H. TRAVEL, SWING

10

SPOOL,BOOM

11

SPOOL,ARM

12

700-84-11232

PACKING

13

700-84-11620

PLATE

14

700-84-11240

O-RING

15

700-84-11650

SPRING

16

700-84-11850

SPRING

17

700-84-11630

RETAINER

18

700-84-11640

COLLAR

19

01252-30830

BOLT

20

01643-30823

WASHER

21

700-84-11390

COVER

22

01252-30620

BOLT

23

700-84-11290

COLLAR

24

700-84-11820

SEAL,DUST

25

700-84-11310

PLATE

26

01252-30620

BOLT

27

700-42-31460

VALVE

28

700-84-11930

VALVE

29

700-42-31470

SPRING

30

700-84-11320

PLUG

31

07002-13034

O-RING

32

07040-12012

PLUG

33

07002-02034

O-RING

34

700-82-53000

MAIN RELIEF VALVE A.,MAIN RELIEF

35

700-80-66002

VALVE ASS'Y,SUCTION AND SAFETY

36

700-80-73000

VALVE ASS'Y,SAFETY

37

700-80-75000

VALVE ASS'Y,SUCTION

37

700-80-77000

VALVE ASS'Y,SUCTION

37

700-80-75000

VALVE ASS'Y,SUCTION (PC120SS)

38

700-84-11330

BRACKET

39

01010-51020

BOLT

40

700-84-12180

PLUG,(PC120SS)

41

700-80-51190

RING,(PC120SS)

42

700-13-31161

O-RING,(PC120SS)

43

07002-03334

O-RING,(PC120SS)
