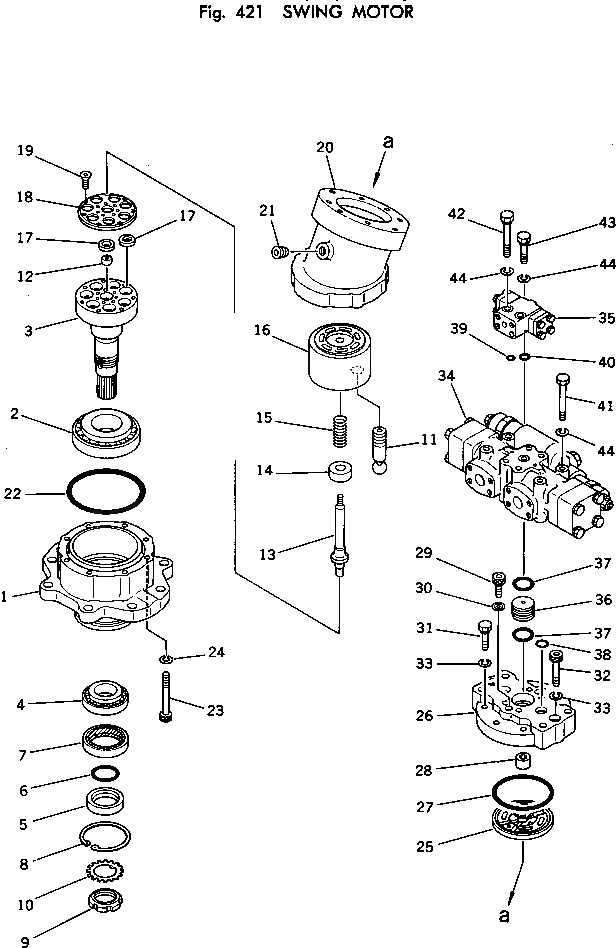

Запчасти Komatsu PC120-1 МОТОР ПОВОРОТА ПОВОРОТН. СИСТЕМА

|$0

706-75-03704

SWING MOTOR ASS'Y,(KMF 090B)

|$1

706-75-42003

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING (KIT)

3

SHAFT,DRIVE (KIT)

4

BEARING

5

RING

6

O-RING (KIT)

7

SEAL,OIL (KIT)

8

RING,SNAP

9

NUT

10

WASHER,LOCK (KIT)

11

PISTON ASS'Y (KIT)

12

BALL,CENTER (KIT)

13

SHAFT,CENTER (KIT)

14

RING,CENTER (KIT)

15

SPRING (KIT)

16

BLOCK,CYLINDER (KIT)

17

HOLDER (KIT)

18

RETAINER (KIT)

19

SCREW (KIT)

20

PLATE,PUMP

21

706-73-40360

PLUG

22

O-RING (KIT)

23

BOLT

24

WASHER,SPRING

25

PLATE,VALVE

26

COVER,END

27

O-RING (KIT)

28

BEARING

29

BOLT (KIT)

30

GASKET,SEAL (KIT)

31

BOLT

32

BOLT

33

WASHER,SPRING

34

706-75-71103

BRAKE VALVE ASS'Y

35

706-75-77101

VALVE ASS'Y,SHUTTLE

36

706-75-90190

RING

37

07000-03035

O-RING

38

07000-13032

O-RING

39

07000-12012

O-RING

40

07000-02011

O-RING

41

01011-51205

BOLT

42

01011-51215

BOLT

43

01011-51245

BOLT

44

01602-21236

WASHER,SPRING

|$46

706-98-00211

DRIVE SHAFT KIT

|$47

BEARING

|$48

SHAFT,DRIVE

|$49

07000-03040

O-RING

|$50

SEAL,OIL

|$51

WASHER,LOCK

|$52

HOLDER

|$53

RETAINER

|$54

SCREW

|$55

07000-02130

O-RING

|$56

BLOCK,CYLINDER

|$57

PISTON ASS'Y

|$58

SHAFT,CENTER

|$59

SPRING

|$60

RING,CENTER

|$61

BALL,CENTER

|$62

07000-02110

O-RING

|$63

BOLT

|$64

07005-00612

GASKET,SEAL
