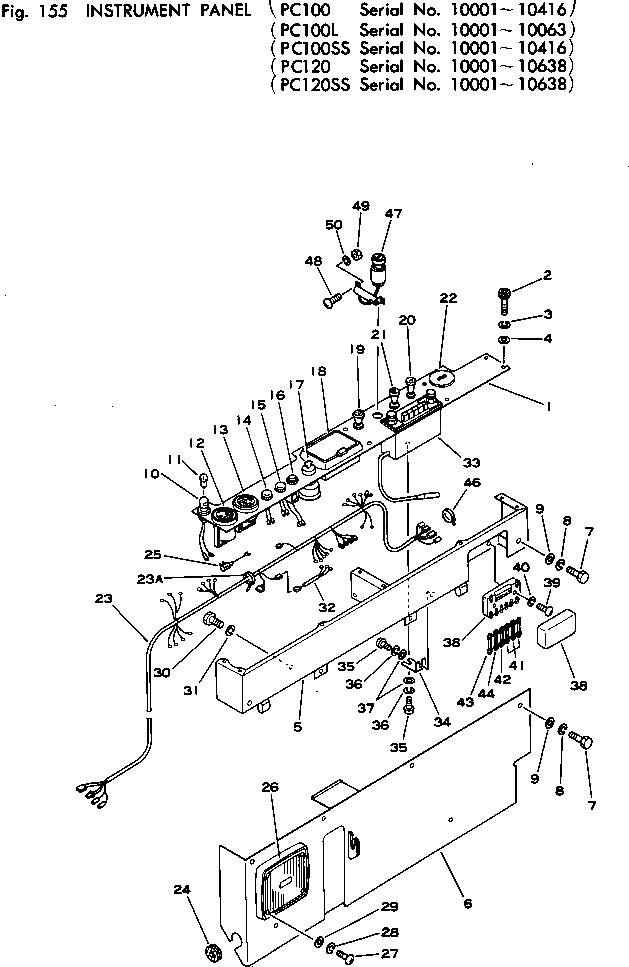

Запчасти Komatsu PC120-1 ПАНЕЛЬ ПРИБОРОВ(№-8) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

205-06-62160

PANEL,INSTRUMENT

2

205-06-62170

BOLT

3

205-06-62180

WASHER,SPRING

4

205-06-62190

WASHER

5

203-06-31112

COVER

6

203-06-31121

COVER

7

01010-30820

BOLT

8

01602-00825

WASHER,SPRING

9

01643-30823

WASHER

10

205-06-51320

LAMP,PANEL

11

205-06-51330

BULB

12

08687-22400

METER,SERVICE

13

203-06-21131

GAUGE,WATER TEMPERATURE

14

125-06-22210

LAMP,CAUTION, OIL PRESSURE

14

08111-02430

BULB, 3W

15

125-06-22220

LAMP,CAUTION, CHARGE

15

08111-02430

BULB, 3W

16

600-815-2371

SIGNAL,HEATER

17

08086-10000

SWITCH,STARTING

18

566-06-16411

ASHTRAY

19

08061-40010

SWITCH,LAMP

20

08183-00000

SWITCH,WIPER

21

09481-02400

SWITCH,HEATER

22

09414-00053

CAP

23

203-06-31153

WIRE ASS'Y

23A

08034-00414

BAND

24

08037-02512

GROMMET

25

205-06-51290

CONDENSER

26

205-06-62320

SPEAKER,(FOR JAPAN)

26

209-06-11730

SPEAKER,(EXCEPT JAPAN)

27

01220-30420

SCREW

27

01220-30520

SCREW

28

01601-00410

WASHER,SPRING

28

01601-00513

WASHER,SPRING

29

01641-00405

WASHER

29

01641-00508

WASHER

30

01010-30612

BOLT

31

01602-00619

WASHER,SPRING

32

205-06-61290

WIRE ASS'Y

33

205-06-62310

RADIO,(FOR JAPAN)

33

209-06-11720

RADIO,(EXCEPT JAPAN)

34

205-06-62280

BRACKET

35

01220-30512

SCREW

36

01601-00513

WASHER,SPRING

37

01641-00508

WASHER

38

175-06-35430

BOX,FUSE

39

01220-30616

SCREW

40

01611-06063

WASHER

41

175-06-35420

FUSE, 10A

42

175-06-35410

FUSE, 20A

43

175-06-35390

FUSE, 30A

44

175-06-35380

FUSE, 40A

46

08034-00519

BAND

47

195-822-6150

LIGHTER

48

01220-30412

SCREW

49

01580-00403

NUT

50

01601-00410

WASHER
