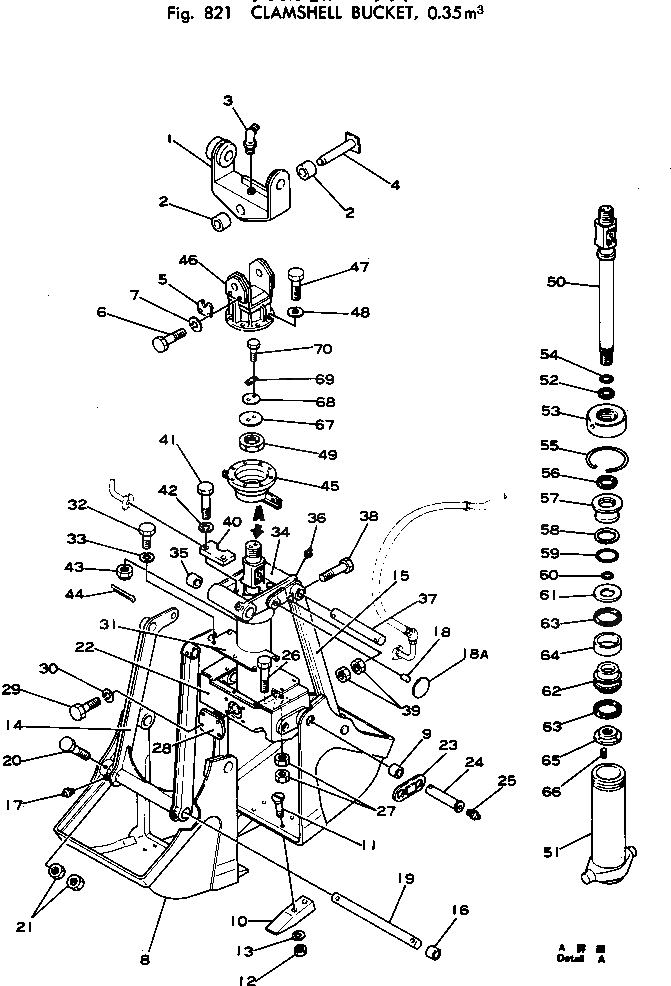

Запчасти Komatsu PC120-1 ГРЕЙФЕРН. КОВШ¤ .M ОПЦИОННЫЕ КОМПОНЕНТЫ
№
Артикул
Название
Примечание
Количество
|$0
202-931-0020
CLAMSHELL A. 0.35M3,0.35M3
|$1
202-931-0030
HANGER ASS'Y
1
HANGER
2
07143-10505
BUSHING
3
07020-00675
FITTING,GREASE
4
202-931-4110
PIN
5
202-931-4120
PLATE,LOCK
6
01010-31230
BOLT
7
01602-01236
WASHER,SPRING
|$9
202-931-0040
BUCKET ASS'Y,CLAMSHELL
|$10
202-931-0050
BODY ASS'Y,CLAMSHELL
8
SHELL
9
07143-10505
BUSHING
10
202-931-1180
TOOTH
11
02090-01275
BOLT
12
02290-01219
NUT
13
01602-01957
WASHER,SPRING
|$17
202-931-0080
ARM ASS'Y,L.H.
|$18
202-931-0090
ARM ASS'Y,R.H.
14
ARM,L.H.
15
ARM,R.H.
16
07144-10505
BUSHING
17
07020-00000
FITTING,GREASE
18
202-931-1170
PIN
18A
202-931-1370
PLATE (WELDED)
19
202-931-1220
PIN
20
01011-31610
BOLT
21
01580-01613
NUT
22
202-931-1230
FRAME
23
202-931-1240
PLATE,LOCK
24
202-931-1250
PIN
25
07020-00000
FITTING,GREASE
26
01011-31620
BOLT
27
01580-01613
NUT
28
202-931-1260
HOUSING
29
01010-31435
BOLT
30
01602-01442
WASHER,SPRING
31
202-931-1270
COVER
32
01010-31020
BOLT
33
01602-01030
WASHER,SPRING
|$40
202-931-0060
FRAME ASS'Y
34
FRAME
35
07144-10505
BUSHING
36
07020-00000
FITTING,GREASE
37
202-931-1290
PIN
38
01011-31620
BOLT
39
01580-01613
NUT
40
202-931-1310
PLATE
41
01012-62495
BOLT
42
01643-32460
WASHER
43
01590-02427
NUT
44
04050-05040
PIN,COTTER
45
202-931-1320
JOINT
46
202-931-1330
BRACKET
47
01010-31645
BOLT
48
01602-01648
WASHER,SPRING
|$56
202-931-0070
CYLINDER ASS'Y
49
202-931-2010
NUT
50
202-931-2021
ROD
51
202-931-2030
CYLINDER
52
07016-00708
SEAL,DUST
53
202-931-2040
CAP
54
07179-00093
RING,SNAP
55
202-931-2080
RING
56
154-63-42373
PACKING
57
202-931-2110
SLEEVE
58
07146-02136
RING,BACK-UP
59
07000-12135
O-RING
60
07000-12060
O-RING
61
202-931-2170
HOLDER
62
202-931-2120
PISTON
63
145-63-32471
PACKING
64
07155-01435
RING
65
202-931-2160
NUT,HOLDER
66
01320-30612
SCREW,SET
67
202-931-1360
PLATE
68
202-931-1350
PLATE
69
202-931-1340
PLATE
70
01010-31230
BOLT
