Запчасти Komatsu PC1100SP-6 МОТОР ХОДА (БЛОК ЦИЛИНДРОВ И ПОРШЕНЬ В СБОРЕ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

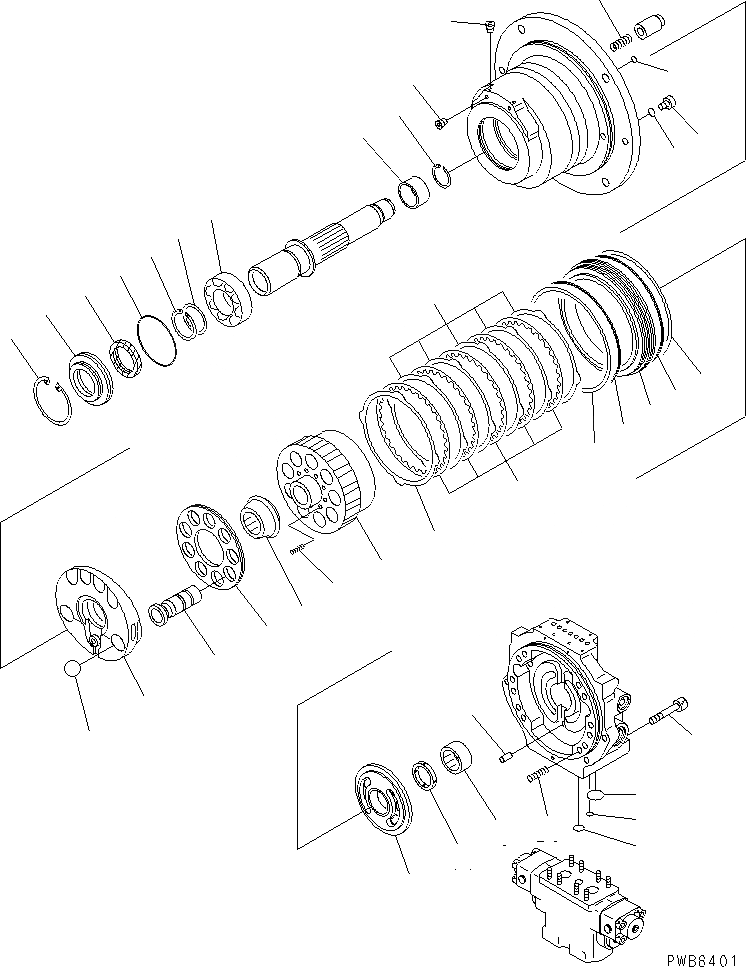

Схема запчастей Komatsu PC1100SP-6 - МОТОР ХОДА (БЛОК ЦИЛИНДРОВ И ПОРШЕНЬ В СБОРЕ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37

Артикул

Название

Примечание

Количество

|$0

21N-60-32101

MOTOR ASS'Y

|$1

KBB011B-12006

CYLINDER BLOCK ASS'Y

1

CYLINDER BLOCK

2

PLATE, VALVE

3

PISTON ASS'Y

|$5

KB2046B-61006

RETAINER PLATE ASS'Y

4

PLATE, RETAINER

5

HOLDER, RETAINER

6

KB20461-67417

SHAPAN

7

KB20461-62006

CASE, OIL SEAL

8

KB20461-66904

BEARING, ROLLER

9

KB20461-60401

BEARING, NEEDLE

10

KB20461-61601

RACE, INNER

11

KB20461-61801

COLLAR

12

KB20461-61315

SPRING

13

KB20461-70802

PIN

14

KB20461-69301

WASHER

15

KB20461-68604

RING, SNAP

16

KB20461-68602

RING, SNAP

17

KB20461-68605

RING, SNAP

18

KB92703-16500

BOLT, SOCKET HEAD

19

KB20461-62104

SEAL, OIL (K1)

20

KB20461-65213

O-RING (K1)

21

KB95123-11500

O-RING (K1)

22

KB20461-69409

PISTON, BRAKE

23

KB20461-69603

PLATE, FRICTION

24

KB20461-69602

PLATE, FRICTION

25

KB20461-69503

PLATE, DISK

26

KB20461-61314

SPRING

27

KB20941-63109

O-RING (K1)

28

KB95113-01000

O-RING (K1)

29

KB15096-01010

PLUG

30

KB20461-61311

SPRING

31

KB20461-69205

BALL, STEEL

32

KB20461-42401

PLUG

33

KB95113-01400

O-RING (K1)

34

KB20461-65104

RING, BACK-UP (K1)

35

KB20461-65105

RING, BACK-UP (K1)

36

KB95113-03400

O-RING (K1)

37

KB95113-02000

O-RING (K1)

K1

KB2046A-65125

REPAIR KIT

1

KB95113-01800

O-RING

1

KB95113-00500

O-RING

1

KB95712-00500

RING, BACK-UP

1

KB95113-00600

O-RING

1

KB95712-00600

RING, BACK-UP

1

KB95113-01000

O-RING

1

KB95113-01200

O-RING

1

KB95113-01800

O-RING

1

KB95113-02100

O-RING

1

KB21001-00182

O-RING

1

KB95712-01200

RING

1

KB95712-01800

RING

1

KB95713-02100

RING, BACK-UP

1

KB95113-01100

O-RING

1

KB95113-01800

O-RING

1

KB20461-65213

O-RING

1

KB20461-62104

SEAL, OIL

1

KB20461-65213

O-RING

1

KB95123-11500

O-RING

1

KB20941-63109

O-RING

1

KB95113-01000

O-RING

1

KB95113-01400

O-RING

1

KB20461-65104

RING, BACK-UP

1

KB20461-65105

RING, BACK-UP

1

KB95113-03400

O-RING

1

KB95113-02000

O-RING

Выбрано товаров: 67
