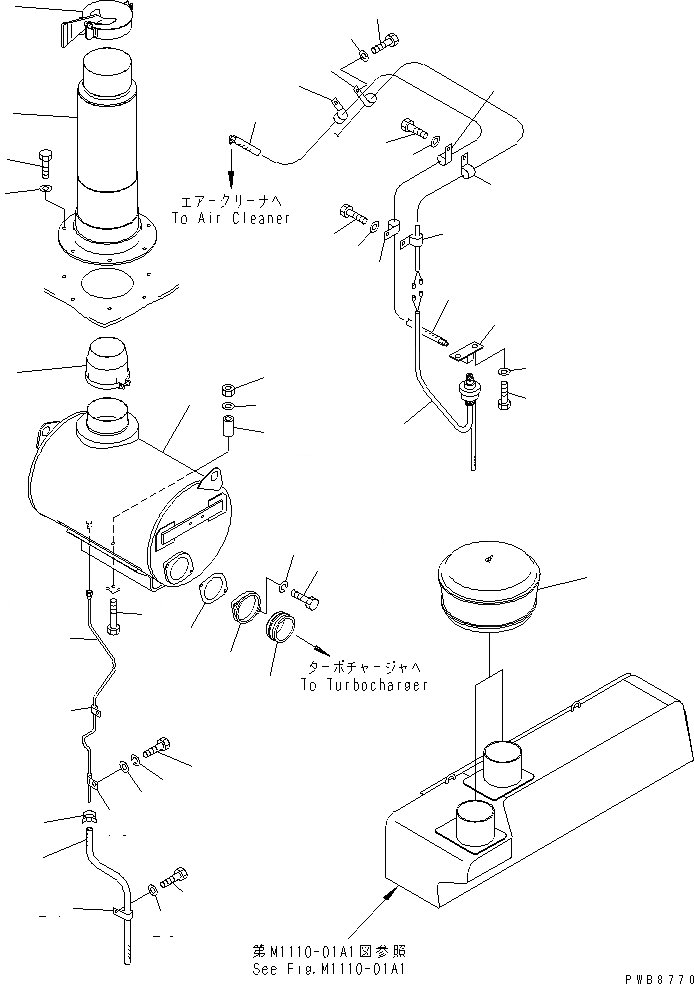

Запчасти Komatsu PC1100SP-6 ВЫПУСКН. (TROPICAL WEATHER СПЕЦ-Я.) КОМПОНЕНТЫ ДВИГАТЕЛЯ

1

6162-13-5280

PIPE,EX

2

6162-14-5640

CAP

2

6162-13-5250

CAP

3

01010-81235

BOLT

4

01643-31232

WASHER

5

6162-15-7250

MUFFLER

6

6162-13-5290

PIPE

7

01010-E1285

BOLT

7

01010-E1280

BOLT

8

6142-22-4640

SPACER

9

01580-01210

NUT

10

01643-31232

WASHER

11

6162-14-5570

FLANGE

12

6162-14-5540

GASKET

13

01020-11030

BOLT

14

01602-01030

WASHER

15

6162-13-5432

JOINT

16

6162-13-5524

TUBE

17

6162-13-5660

CLAMP

18

6162-14-5880

CLIP

19

01010-51835

BOLT

20

01602-21854

WASHER

21

01640-21826

WASHER

22

07260-20990

HOSE

23

07285-00150

CLIP

24

04434-51612

CLIP

25

01010-81225

BOLT

26

01643-31232

WASHER

27

08671-50150

HOSE

28

01010-81230

BOLT

29

01643-31232

WASHER

30

04434-51412

CLIP

31

08036-01014

CLIP

32

21N-01-31130

BRACKET

33

01010-81230

BOLT

34

01643-31232

WASHER

35

7861-91-1420

SENSOR

36

21N-01-31330

PRE CLEANER

36

41K-13-11110

PRECLEANER ASS'Y

36

421-01-23110

COVER

36

421-01-23120

BOWL

36

421-01-23130

SLEEVE
