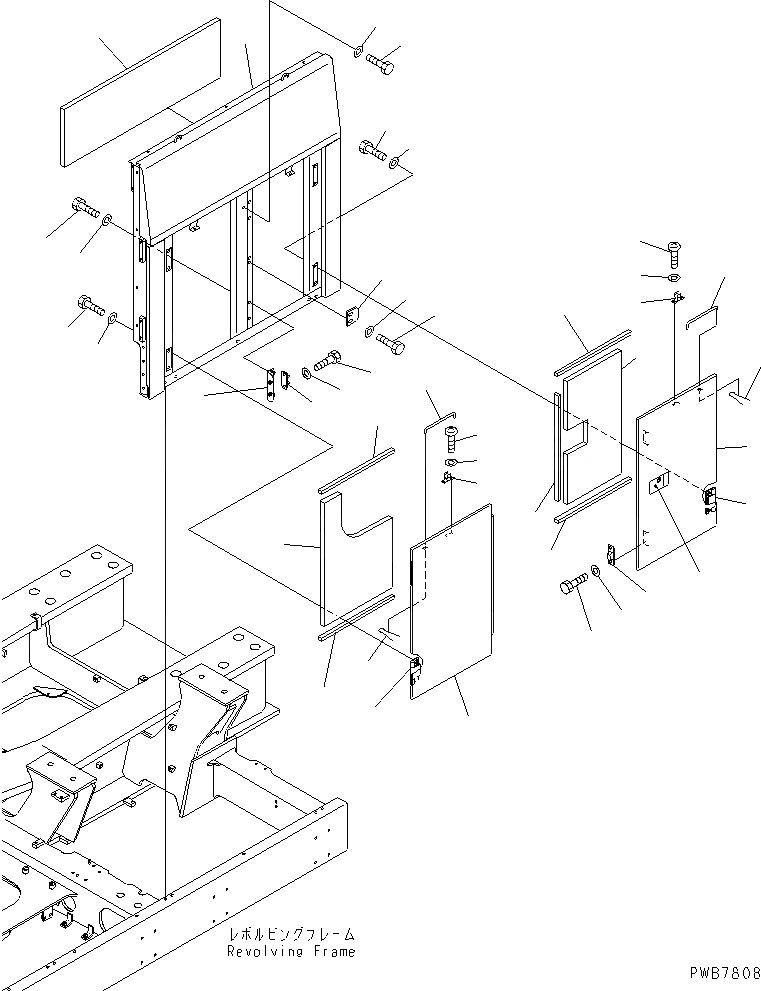

Запчасти Komatsu PC1100SE-6 ЛЕВ. КРЫШКА(ЗАДН. ) ЧАСТИ КОРПУСА

1

21N-54-31211

FRAME

2

21N-54-31271

SHEET

3

20Y-54-28170

BRACKET

4

01010-81230

BOLT

5

01643-31232

WASHER

6

205-54-51970

DOVE TAIL

7

01010-80616

BOLT

8

01643-30623

WASHER

9

209-54-63260

BRACKET

10

01010-81230

BOLT

11

01643-31232

WASHER

12

21N-54-31221

COVER

13

198-54-41982

LOCK ASS'Y (WELDED)

14

20Y-54-28161

HINGE (WELDED)

15

21N-54-31241

SHEET

16

21N-54-31390

SHEET

17

21N-54-31760

SHEET

18

205-54-53550

DOVE TAIL

19

01010-80616

BOLT

20

01643-30623

WASHER

21

205-54-64140

BAR

22

04050-13018

PIN

23

20B-54-12210

SPRING

24

01210-40408

SCREW

25

01641-20405

WASHER

26

01010-81230

BOLT

27

01643-31232

WASHER

28

21N-54-31351

COVER

29

20Y-54-28161

HINGE (WELDED)

30

21N-54-31251

SHEET

31

21N-54-31760

SHEET

32

205-54-64140

BAR

33

04050-13018

PIN

34

20B-54-12210

SPRING

35

01210-40408

SCREW

36

01641-20405

WASHER

37

01010-81230

BOLT

38

01643-31232

WASHER

39

01010-81230

BOLT

40

01643-31232

WASHER
