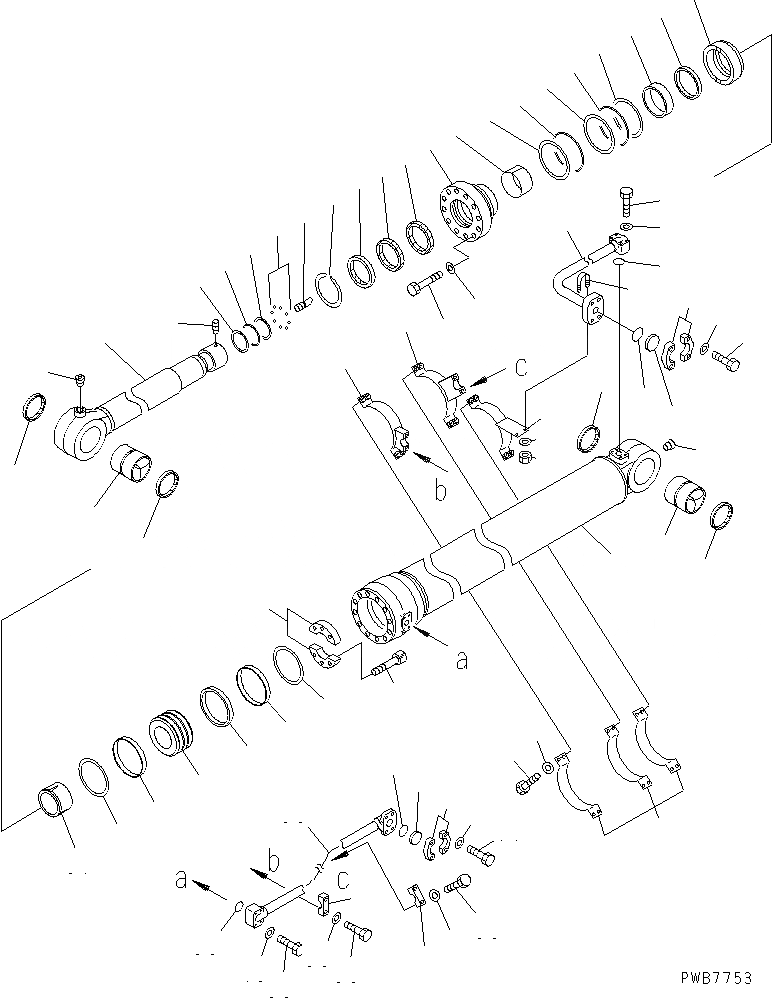

Запчасти Komatsu PC1100-6 ЦИЛИНДР КОВША (FR ЭКСКАВАТ.) (ДЛЯ .M И .M РУКОЯТЬ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XZ200

CYLINDER GROUP,L.H. (FINAL COATING)

G-1

21N-63-X2332

CYLINDER GROUP,L.H.

G-2

707-01-XZ210

CYLINDER GROUP,R.H. (FINAL COATING)

G-2

21N-63-X2342

CYLINDER GROUP,R.H.

|1

21N-63-02332

CYLINDER ASS'Y,L.H.

|1

21N-63-02342

CYLINDER ASS'Y,R.H.

1

21N-63-72542

CYLINDER,L.H.

|1

21N-63-72642

CYLINDER,R.H.

2

707-76-10130

BUSHING

3

07145-00100

SEAL,DUST (KIT)

4

07043-00108

PLUG

5

707-27-16620

HEAD,CYLINDER

6

707-51-11030

PACKING,ROD (KIT)

7

707-51-11630

RING,BUFFER (KIT)

8

707-52-90860

BUSHING

9

198-63-94170

SEAL,DUST (KIT)

10

07179-13126

RING

11

07000-15155

O-RING (KIT)

12

07001-05155

RING,BACK-UP (KIT)

13

07000-15155

O-RING (KIT)

14

07001-05155

RING,BACK-UP (KIT)

15

707-71-31650

COLLAR

16

707-71-31181

COLLAR

17

707-71-11150

RING

18

01010-82085

BOLT

19

707-88-75310

WASHER

20

21N-63-72521

ROD,PISTON

21

707-76-10140

BUSHING

22

208-70-12231

SEAL,DUST (KIT)

23

07043-00108

PLUG

24

707-36-16320

PISTON

25

07000-12090

O-RING (KIT)

26

707-35-52930

RING,BACK-UP (KIT)

27

707-44-16910

RING

28

707-39-16820

RING,WEAR (KIT)

29

707-44-16180

RING,PISTON (KIT)

30

707-40-16870

SPACER

31

707-71-61100

PLUNGER

32

01252-61450

BOLT

33

707-71-70220

PLUNGER

34

04260-00635

BALL

35

01312-01220

SCREW

36

21N-63-72572

TUBE,L.H.

|36

21N-63-72672

TUBE,R.H.

37

21N-63-72580

TUBE,L.H.

|37

21N-63-72680

TUBE,R.H.

38

07000-13035

O-RING (KIT)

39

01010-81060

BOLT

40

01643-51032

WASHER

41

07000-13038

O-RING

42

07378-11210

HEAD

43

07371-51260

FLANGE

44

01010-81245

BOLT

45

01643-31232

WASHER

46

07000-13048

O-RING

47

07378-11410

HEAD

48

07371-51470

FLANGE

49

01010-81455

BOLT

50

01643-31445

WASHER

51

707-88-87140

BAND

52

21N-63-72690

BRACKET

53

21N-63-72591

BRACKET

54

21N-63-72561

BRACKET

55

01010-81240

BOLT

56

01643-51232

WASHER

57

707-88-10150

CLAMP

58

01010-81245

BOLT

59

01643-31232

WASHER

60

07283-23450

CLIP

61

01599-01011

NUT

62

01643-31032

WASHER

K

707-99-67290

SERVICE KIT
