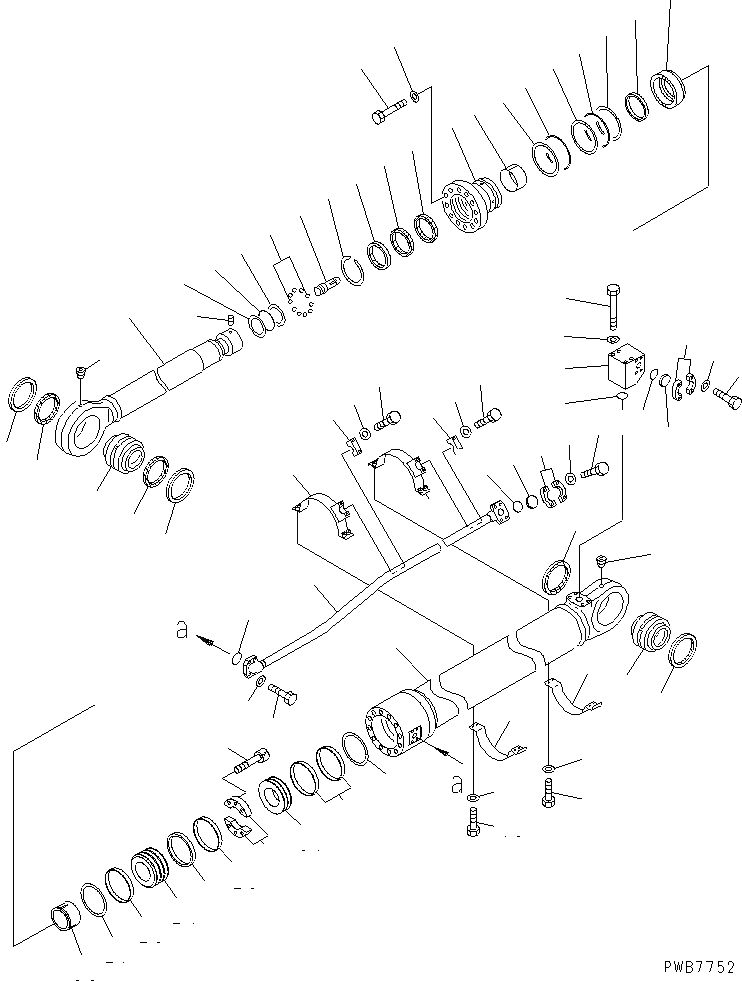

Запчасти Komatsu PC1100-6 ЦИЛИНДР РУКОЯТИ(FR ЭКСКАВАТ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

21N-63-X2322

CYLINDER GROUP

|1

21N-63-02322

CYLINDER ASS'Y

1

21N-63-62341

CYLINDER

2

707-76-16030

BUSHING

3

707-77-16020

SEAL,DUST (KIT)

4

07043-00108

PLUG

5

707-27-25710

HEAD,CYLINDER

6

707-51-17030

PACKING,ROD (KIT)

7

707-51-17630

RING,BUFFER (KIT)

8

707-52-91450

BUSHING

9

707-56-17510

SEAL,DUST (KIT)

10

07179-15190

RING,SNAP

11

07000-15250

O-RING (KIT)

12

707-35-92600

RING,BACK-UP (KIT)

13

07000-15250

O-RING (KIT)

14

07001-05250

RING,BACK-UP (KIT)

15

707-71-31830

COLLAR

16

707-71-11850

RING

17

01011-83330

BOLT

18

01643-33380

WASHER

19

21N-63-62321

ROD,PISTON

20

707-46-16030

BUSHING

21

707-46-16040

BUSHING

22

707-77-16010

SEAL,DUST (KIT)

23

07043-00108

PLUG

24

707-36-25110

PISTON

25

07000-15145

O-RING (KIT)

26

707-35-91550

RING,BACK-UP (KIT)

27

707-44-25910

RING

28

707-39-25820

RING,WEAR (KIT)

29

707-44-25180

RING,PISTON (KIT)

30

707-40-28020

SPACER

31

707-36-25150

PISTON

32

707-71-50400

PLUNGER

33

04260-01270

BALL

34

707-71-91390

PIN

35

707-71-51852

PLUNGER

36

01253-61630

BOLT

37

21N-63-62371

TUBE

38

07000-13048

O-RING (KIT)

39

01010-81450

BOLT

40

01643-31445

WASHER

41

21N-62-18430

BAND

42

21N-63-62390

BRACKET

43

01010-81240

BOLT

44

01643-31232

WASHER

45

176-61-41330

CLAMP

46

01010-81250

BOLT

47

01643-31232

WASHER

48

21N-62-18450

BLOCK

49

07000-12060

O-RING (KIT)

50

01011-81890

BOLT

51

01643-31845

WASHER

52

07000-13048

O-RING

53

07378-11410

HEAD

54

07371-51470

FLANGE

55

01010-81455

BOLT

56

01643-31445

WASHER

K

707-99-89220

SERVICE KIT
