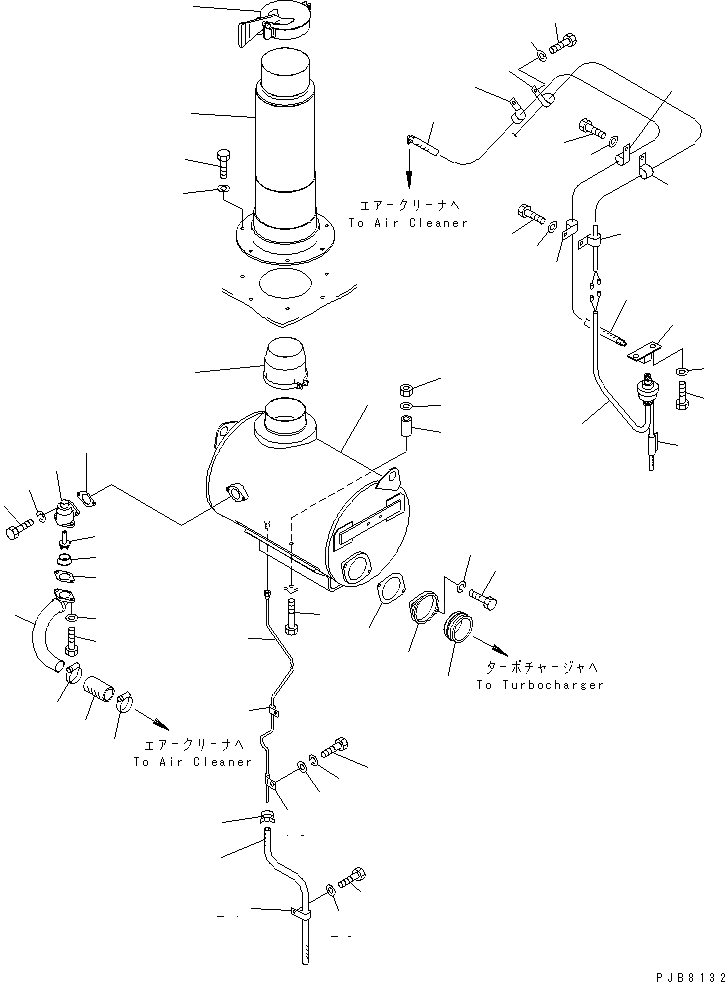

Запчасти Komatsu PC1100-6 ВЫПУСКН. КОМПОНЕНТЫ ДВИГАТЕЛЯ

1

6162-13-5280

PIPE,EX

2

6162-14-5640

CAP

|2

6162-13-5250

CAP

3

01010-81235

BOLT

4

01643-31232

WASHER

5

6162-15-7240

MUFFLER

6

6162-13-5290

PIPE

7

01010-E1285

BOLT

|7

01010-E1280

BOLT

8

6142-22-4640

SPACER

9

01580-01210

NUT

10

01643-31232

WASHER

11

6162-14-5570

FLANGE

12

6162-14-5540

GASKET

13

01020-11030

BOLT

14

01602-01030

WASHER

15

6162-13-5432

JOINT

16

6162-13-5524

TUBE

17

6162-13-5660

CLAMP

18

6162-14-5880

CLIP

19

01010-51835

BOLT

20

01602-21854

WASHER

21

01640-21826

WASHER

22

07260-20990

HOSE

23

07285-00150

CLIP

24

04434-51612

CLIP

25

01010-81225

BOLT

26

01643-31232

WASHER

|27

6162-13-5302

VALVE ASS'Y

27

BODY

27A

6162-13-5320

VALVE

27B

6162-13-5380

SEAT

28

6162-13-5611

GASKET

29

6162-13-5820

PIPE

30

01010-E1025

BOLT

31

01640-21016

WASHER

32

6130-12-8620

HOSE

33

07281-00709

CLAMP

34

08671-50150

HOSE

35

01010-81230

BOLT

36

01643-31232

WASHER

37

04434-51412

CLIP

38

08036-01014

CLIP

39

21N-01-31130

BRACKET

40

01010-81230

BOLT

41

01643-31232

WASHER

42

7861-91-1420

SENSOR

43

209-01-71150

SHEET
