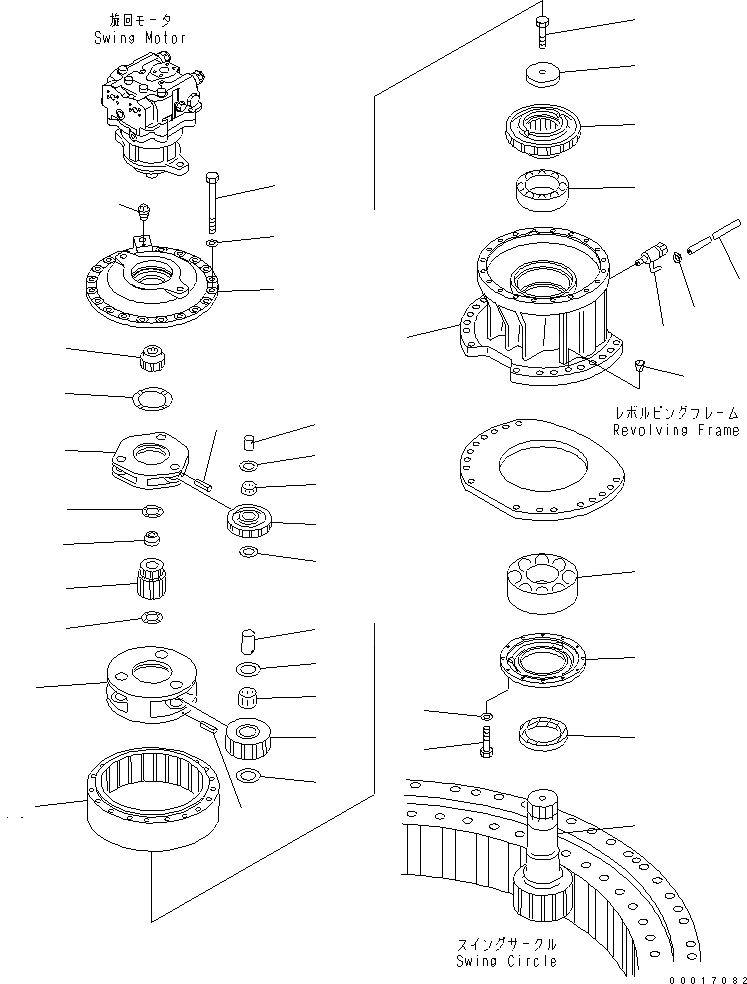

Запчасти Komatsu PC1100-6 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

1

208-26-62170

CASE

2

07049-02430

PLUG

3

06000-23124

BEARING

4

21N-26-31140

BEARING

5

208-26-52262

COVER

6

01010-81040

BOLT

7

01643-31032

WASHER

8

208-26-61290

SEAL

9

21N-26-31110

SHAFT, 13 TEETH

10

208-26-61151

COUPLING

10

208-26-61150

COUPLING

11

208-26-52230

PLATE

12

205-32-51211

BOLT

13

207-27-62170

CARRIER

14

207-27-62140

GEAR

15

207-27-61230

BEARING

16

20Y-27-21250

WASHER

17

207-27-61250

PIN

18

20Y-27-21290

PIN

19

207-27-62150

GEAR

20

207-27-62130

GEAR

21

20Y-27-13310

WASHER

22

207-26-61180

GUIDE

23

208-26-62140

CARRIER

24

208-26-62120

GEAR

25

20Y-27-21260

BEARING

26

20Y-27-21240

WASHER

27

20Y-27-21220

PIN

28

20Y-27-21280

PIN

29

208-26-62110

GEAR

30

20Y-27-11250

SPACER

31

208-26-62161

COVER

31

208-26-62160

COVER

32

207-27-52341

BOLT

33

01643-31845

WASHER

34

07042-00312

PLUG

34

07042-00108

PLUG

35

07730-40004

VALVE

36

207-26-31220

TUBE

37

07281-00197

CLAMP
