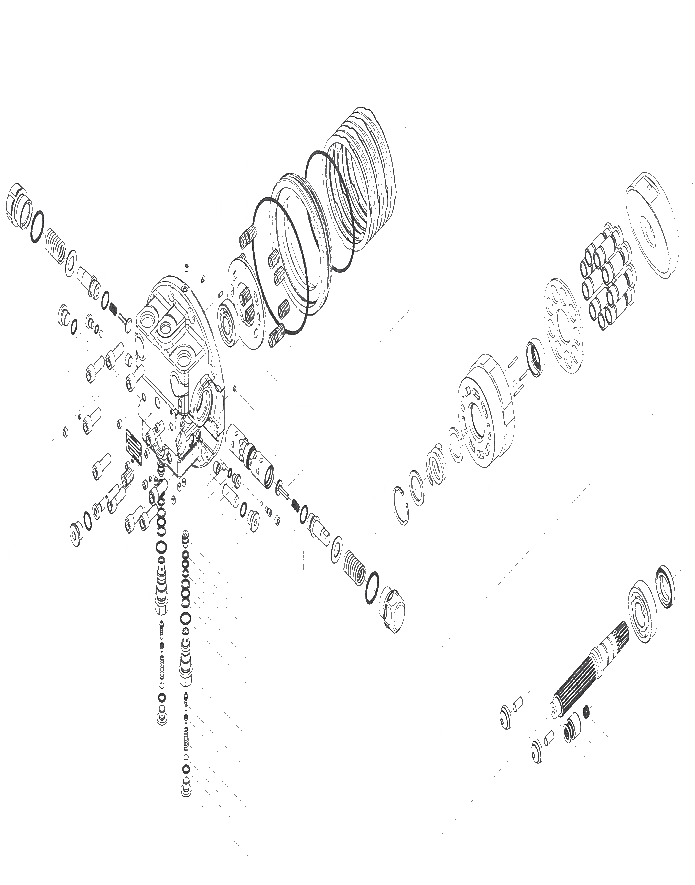

Запчасти Komatsu PC110-8M0 МОТОР ХОДА (ГИДРАВЛ МОТОР) () [ХОД СИСТЕМА И ITS КОМПОНЕНТЫ]

205

Plug

206

Spring

207

TZJB2401-P10A

O-ring

208

TZJB2407T2P10A

Back-up Ring

209

07000-12014

O-ring

210

TZJB2407T2-P14

Back-up Ring

211

07000-12011

O-ring

212

07000-12018

O-ring

213

Shim

|$10

TZ600D400001-B

Control Valve

|$11

TZ600D410001-B

Rear Flange Assembly

|$12

TZ600D410101-B

Rear Flange Kit

|$13

TZ600D415001-B

Spool Assembly

323

Spool

326

Plug

327

Valve

330

Spring

331

O-ring

301

Rear Flange

324

TZ100A2051-00

Plug

325

TZ600D4052-01

Washer

328

TZ100A2055-00

Spring

329

TZS0506

Orifice

336

07000-13032

O-ring

352

TZ200C2021-01

Plug

353

04260-00793

Steel Ball

354

TZGDL1-16-S

Hex Socket Bolt

357

TZ610B2021-00

Plug

358

07000-11008

O-ring

359

07000-12018

O-ring

363

TZ600D4069-00

Spool

366

TZ420B2089-01

Spring

376

TZS0505

Orifice

377

TZ976B2079-00

Filter

378

04260-00476

Steel Ball

379

TZ571B2079-00

Wing Plug

380

TZ720B2021-00

Plug

381

TZ600D4081-00

Piston
