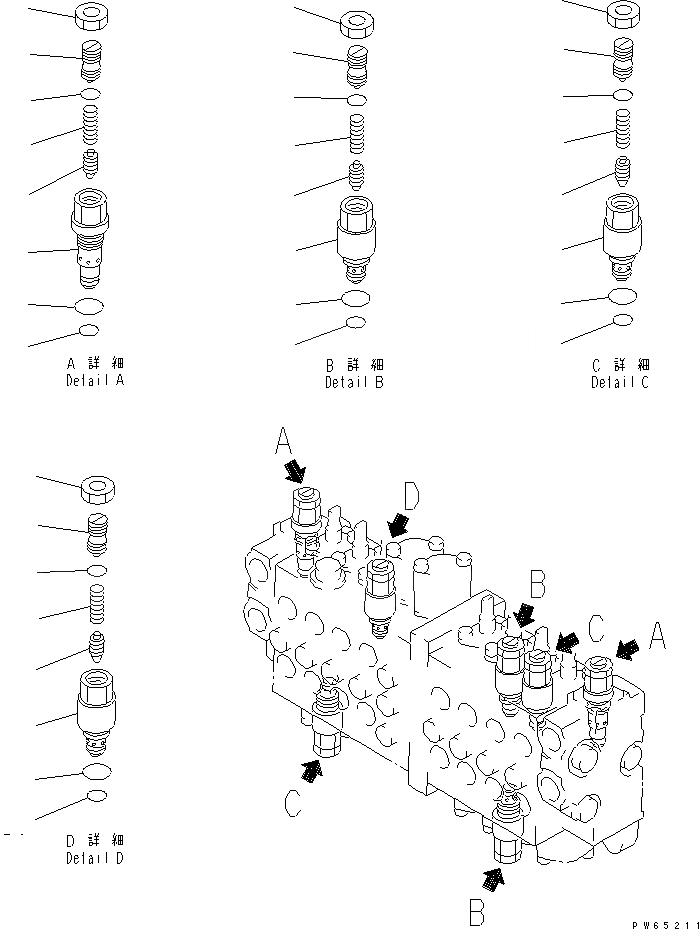

Запчасти Komatsu PC10UU-3 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (9-СЕКЦИОНН.) (/) (ВНУТР. ЧАСТИ)(№7-799) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

724-00-22001

VALVE ASS'Y

|1

724-00-79000

VALVE ASS'Y,MAIN RELIEF

1

724-00-51110

SLEEVE

2

724-00-51120

POPPET

3

724-00-51130

SCREW

4

724-00-51140

SPRING

5

724-00-51150

O-RING

6

07002-11423

O-RING

7

07002-11023

O-RING

8

01583-11006

NUT

|9

724-00-73000

VALVE ASS'Y,RELIEF

9

724-00-51230

SLEEVE

10

724-00-51120

POPPET

11

724-00-51130

SCREW

12

724-00-51240

SPRING

13

724-00-51150

O-RING

14

07002-11423

O-RING

15

07002-11023

O-RING

16

01583-11006

NUT

|17

724-00-62000

VALVE ASS'Y,SAFETY

17

SLEEVE

18

POPPET

19

SCREW

20

SPRING

21

724-00-51150

O-RING

22

07002-11423

O-RING

23

O-RING

24

NUT

|25

724-00-65000

VALVE ASS'Y,SAFETY

25

SLEEVE

26

POPPET

27

SCREW

28

SPRING

29

724-00-51150

O-RING

30

07002-11423

O-RING

31

O-RING

32

NUT
