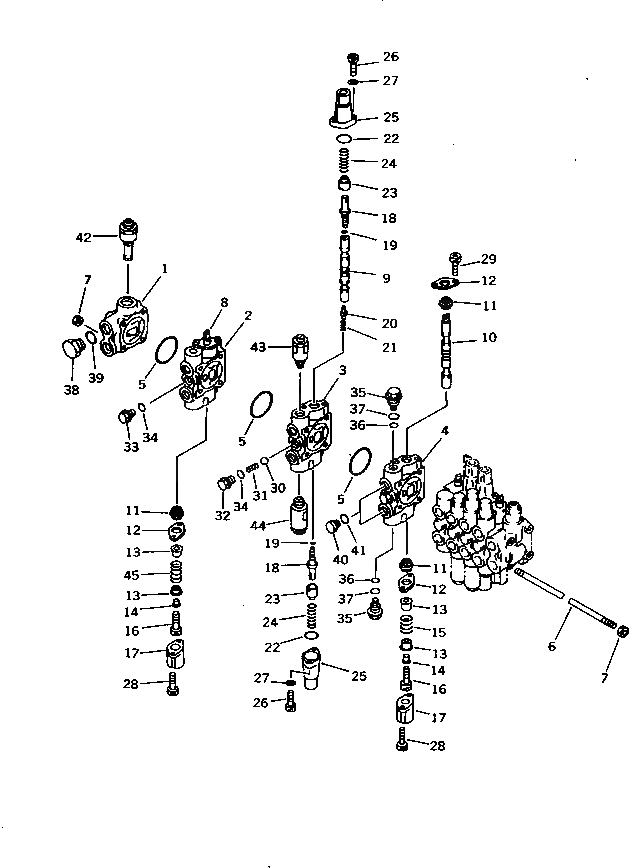

Запчасти Komatsu PC10N-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.)(/) ГИДРАВЛИКА

|1

709-37-13301

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

709-37-11540

STUD

7

01580-10806

NUT

8

SPOOL,L.H. TRAVEL

9

SPOOL,ARM

10

SPOOL,SERVICE

11

709-32-11530

SEAL,DUST

12

709-32-11540

PLATE

13

709-32-11550

RETAINER

14

709-32-11560

COLLAR

15

709-32-11580

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

709-32-13541

JOINT

19

07000-11003

O-RING

20

709-32-13531

POPPET

21

709-32-13551

SPRING

22

709-32-11760

O-RING

23

709-32-12840

RETAINER

24

709-32-13510

SPRING

25

709-32-12851

CASE

26

01252-30622

BOLT

27

01641-20608

WASHER

28

01252-30616

BOLT

29

01252-30610

BOLT

30

04260-01270

BALL

31

709-32-11820

SPRING

32

709-32-11810

PLUG

33

709-32-11930

PLUG

34

07002-11823

O-RING

35

709-32-11830

PLUG

36

709-32-11840

O-RING

37

07002-02034

O-RING

38

07040-12012

PLUG

39

07002-02034

O-RING

40

07040-11812

PLUG

41

07002-11823

O-RING

42

700-27-59000

VALVE ASS'Y,MAIN RELIEF

43

709-30-66200

VALVE ASS'Y,SAFETY

44

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

45

709-32-11590

SPRING
