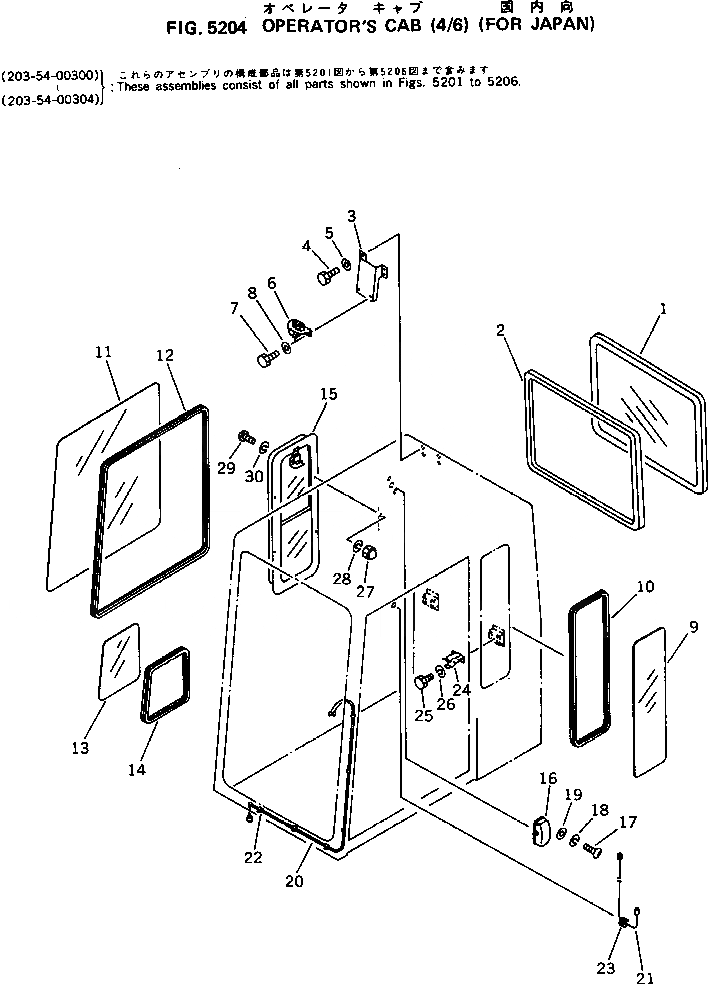

Запчасти Komatsu PC100US-3 КАБИНА (/) (ДЛЯ ЯПОН.) ЧАСТИ КОРПУСА

|1

203-54-00304

OPERATOR'S CAB ASS'Y

|1

203-54-00302

OPERATOR'S CAB ASS'Y

|1

203-54-00301

OPERATOR'S CAB ASS'Y

|1

203-54-00300

OPERATOR'S CAB ASS'Y

1

203-54-43710

GLASS

2

203-54-43660

STRIP,WEATHER

3

203-54-43680

BRACKET

4

01010-50816

BOLT

5

01643-30823

WASHER

6

205-54-63310

LOCK ASS'Y

7

01010-50820

BOLT

8

01643-30823

WASHER

9

205-54-71241

GLASS

10

203-54-45470

STRIP,WEATHER

|10

205-54-71531

STRIP,WEATHER

11

205-54-71231

GLASS

12

205-54-71541

STRIP,WEATHER

13

205-54-72671

GLASS

14

205-54-72661

STRIP,WEATHER

15

203-54-43300

SASH ASS'Y

16

08141-02400

LAMP

|16

08116-02410

BULB¤ 10W

17

01220-40412

SCREW

18

01601-20410

WASHER,SPRING

19

01641-20405

WASHER

20

205-06-71540

WIRE

21

205-06-71550

WIRE

22

205-54-72710

CLIP

23

08037-01008

GROMMET

24

22D-62-14560

CLAMP

25

01010-50816

BOLT

26

01643-30823

WASHER

27

205-54-71490

NUT

28

01602-20513

WASHER,SPRING

29

01220-40516

SCREW

30

01602-20513

WASHER,SPRING
