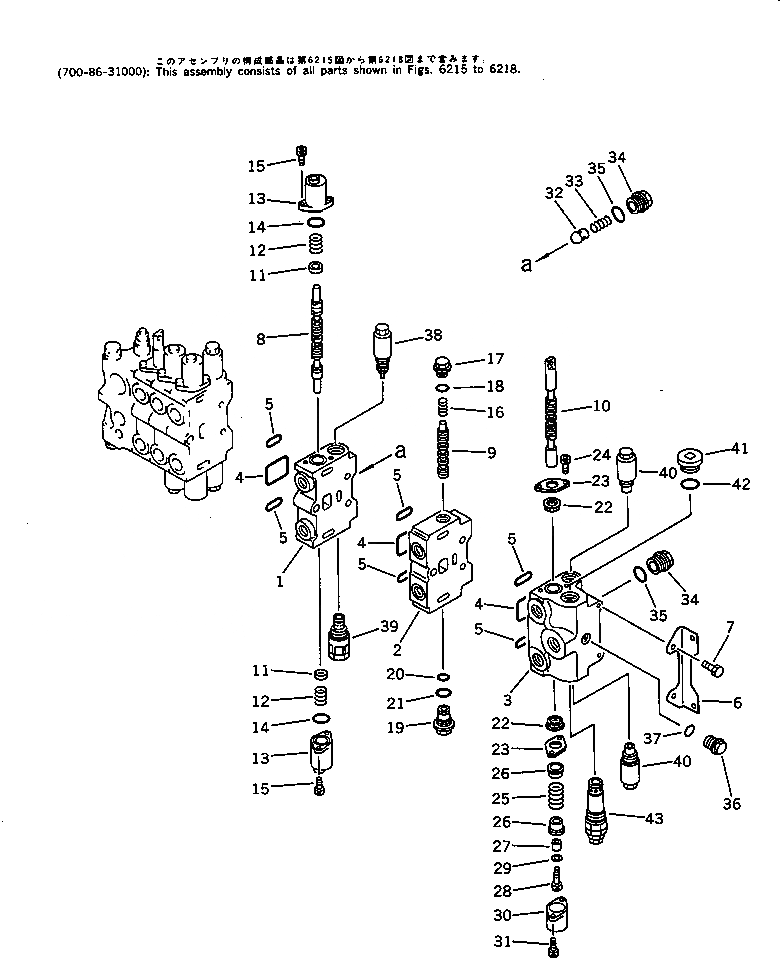

Запчасти Komatsu PC100US-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-31000

CONTROL VALVE ASS'Y,R.H.

1

BLOCK,VALVE

2

BLOCK,VALVE

3

BODY,VALVE

4

07000-13050

O-RING

5

07000-03030

O-RING

6

700-84-11330

BRACKET

7

01010-51020

BOLT

8

SPOOL,BUCKET

9

SPOOL

10

SPOOL,R.H. TRAVEL

11

700-84-13781

RETAINER

12

700-84-13770

SPRING

13

700-84-12510

CASE

14

700-84-11240

O-RING

15

01252-30612

BOLT

16

700-84-13880

SPRING

17

700-84-13870

PLUG

18

07002-02434

O-RING

19

700-84-13510

NIPPLE

20

07000-02015

O-RING

21

07002-02434

O-RING

22

700-84-13910

SEAL

23

700-84-13891

PLATE

24

01252-30612

BOLT

25

700-84-11650

SPRING

26

700-84-13711

RETAINER

27

700-84-11641

COLLAR

28

01252-30830

BOLT

29

01643-30823

WASHER

30

700-84-11390

COVER

31

01253-30625

BOLT

32

700-42-31460

VALVE

33

700-42-31470

SPRING

34

700-84-11320

PLUG

35

07002-13034

O-RING

36

700-22-11370

PLUG

37

07002-12434

O-RING

38

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

39

700-81-74001

VALVE ASS'Y,SAFETY

40

700-81-81000

VALVE ASS'Y,SUCTION

41

07040-13316

PLUG

42

07002-13334

O-RING

43

700-86-55001

VALVE ASS'Y,MAIN RELIEF
