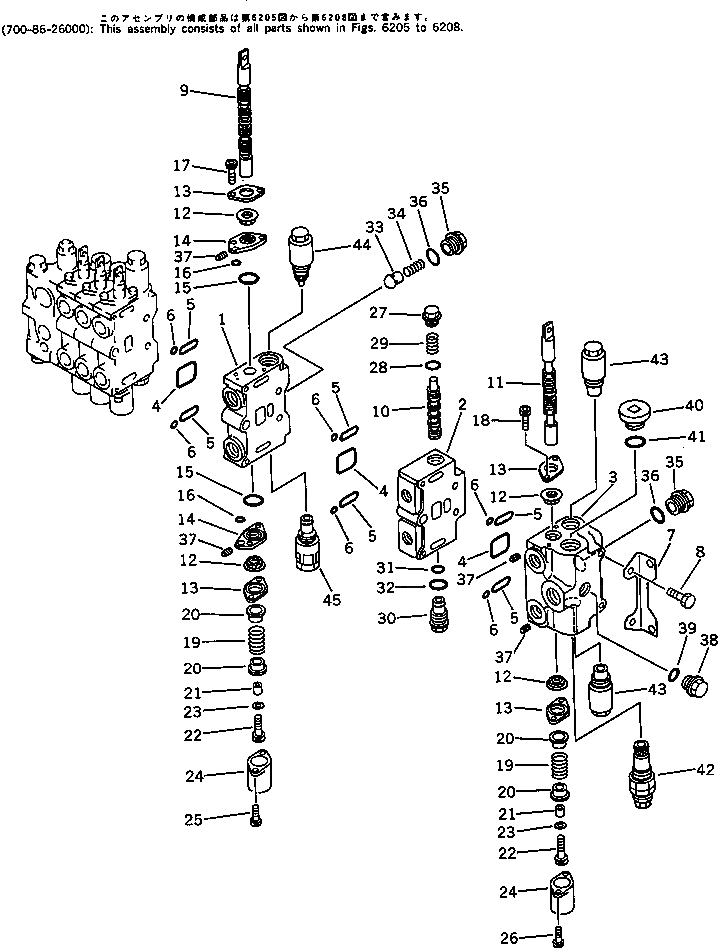

Запчасти Komatsu PC100US-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-26000

CONTROL VALVE ASS'Y,R.H.

1

BLOCK,VALVE

2

BLOCK,VALVE

3

BODY,VALVE

4

07000-13050

O-RING

5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-84-11330

BRACKET

8

01010-51020

BOLT

9

700-84-14250

SPOOL,BUCKET

10

700-84-13930

SPOOL

11

700-84-14280

SPOOL,R.H. TRAVEL

12

700-84-13910

SEAL

13

700-84-13891

PLATE

14

700-84-13921

PLATE

15

700-84-11240

O-RING

16

07000-01007

O-RING

17

01252-30620

BOLT

18

01252-30612

BOLT

19

700-84-11650

SPRING

20

700-84-13711

RETAINER

21

700-84-11640

COLLAR

22

01252-30830

BOLT

23

01643-30823

WASHER

24

700-84-11390

COVER

25

01252-30630

BOLT

26

01252-30625

BOLT

27

700-84-13870

PLUG

28

07002-02434

O-RING

29

700-84-13880

SPRING

30

700-84-13510

NIPPLE

31

07000-02015

O-RING

32

07002-02434

O-RING

33

700-42-31460

VALVE

34

700-42-31470

SPRING

35

700-84-11320

PLUG

36

07002-13034

O-RING

37

706-86-51170

PLUG

38

700-22-11370

PLUG

39

07002-12434

O-RING

40

07040-13316

PLUG

41

07002-13334

O-RING

42

700-86-55001

VALVE ASS'Y,MAIN RELIEF

43

700-81-81000

VALVE ASS'Y,R.H. TRAVEL

44

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

45

700-81-74001

VALVE ASS'Y,SAFETY
