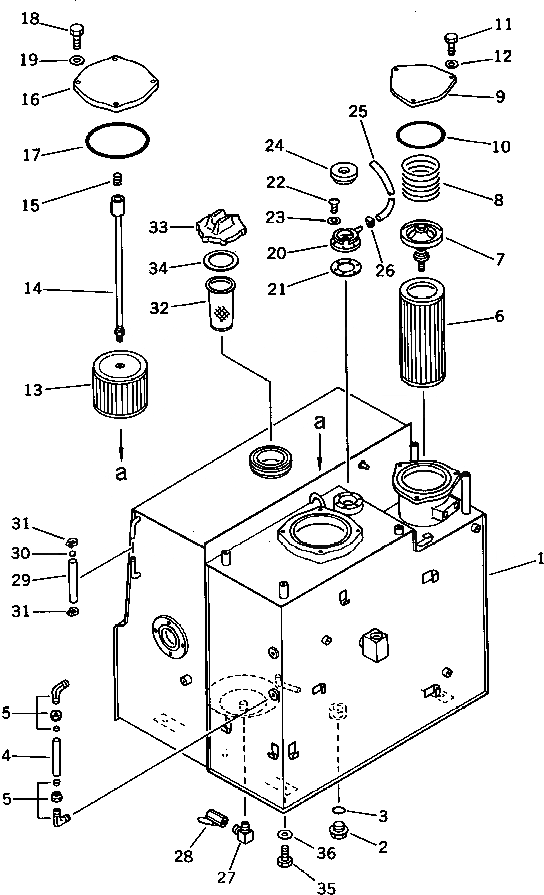

Запчасти Komatsu PC100U-3 ГИДРАВЛ МАСЛ. БАК(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

202-60-00201

HYDRAULIC TANK ASS'Y

1

202-60-58111

TANK

2

07044-13620

PLUG,OIL DRAIN

3

07002-03634

O-RING

4

203-60-31160

TUBE

5

203-60-31100

ELBOW ASS'Y

6

07063-01100

ELEMENT

7

175-60-27300

VALVE ASS'Y

8

175-60-27340

SPRING

9

203-60-31172

COVER

10

07000-05155

O-RING

11

01010-51025

BOLT

12

01643-31032

WASHER

13

21K-60-11190

STRAINER

14

202-60-58120

ROD

15

12R-60-11230

SPRING

16

21K-60-11180

COVER

17

07000-05180

O-RING

18

01010-51025

BOLT

19

01643-31032

WASHER

20

201-60-12171

FILLER NECK,NECK

21

205-60-51460

GASKET

22

01220-40516

SCREW

23

01601-20513

WASHER,SPRING

24

201-60-12190

CAP ASS'Y

25

203-60-12170

TUBE

26

07280-01110

CLAMP

27

20D-68-11670

ELBOW

28

07700-40240

VALVE,FUEL DRAIN

29

203-60-42180

TUBE

30

201-04-21160

BALL,FLOAT

31

07281-00197

CLAMP

32

07056-18416

STRAINER

33

07050-21200

CAP

33

07091-11200

CAP,(FOR VANDALISM)

34

07050-21202

GASKET

35

01010-51435

BOLT

36

01643-31445

WASHER
