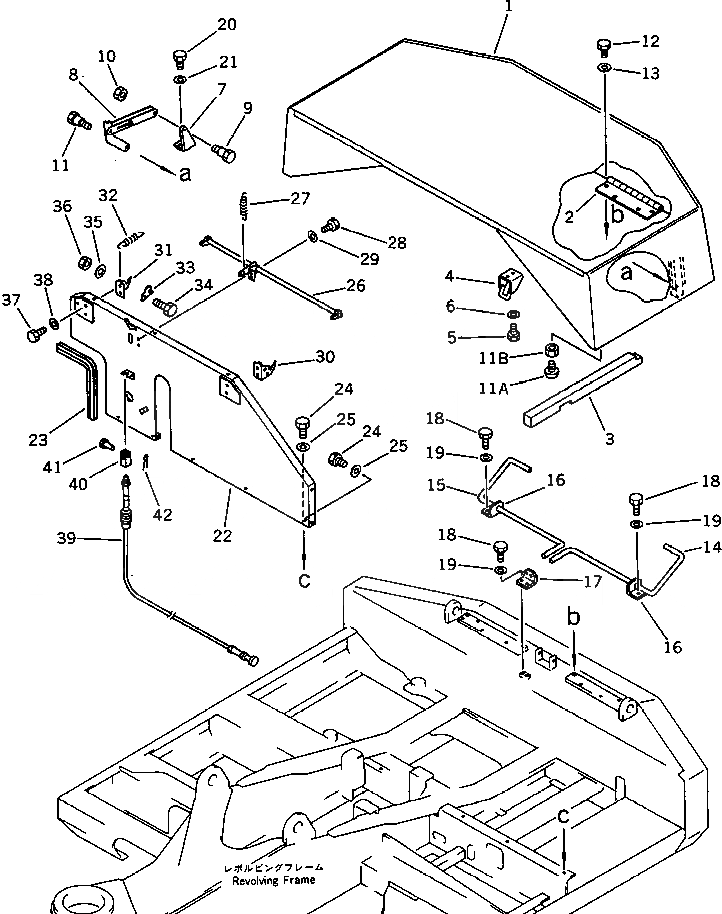

Запчасти Komatsu PC100U-3 MACHINERY ОБСТАНОВКА (/)(№-) ЧАСТИ КОРПУСА

|$0

203-54-00311

MACHINE CAB ASS'Y

|$1

203-54-00310

MACHINE CAB ASS'Y

1

HOOD

2

20G-54-11670

HINGE (WELDED)

3

203-54-42860

SHEET

4

203-54-42350

BRACKET

5

01010-51020

BOLT

6

01643-31032

WASHER

7

203-54-42242

BRACKET

7

203-54-42241

BRACKET

8

20R-54-21430

STAY

9

20R-54-21440

BOLT

10

01580-11008

NUT

11

20R-54-21450

BOLT

11A

201-54-21360

CUSHION

11B

01580-10504

NUT

12

01010-51020

BOLT

13

144-854-1890

WASHER

14

203-54-42570

BAR,TORSION, L.H.

15

203-54-42580

BAR,TORSION, R.H.

16

203-54-42270

PLATE

17

203-54-42280

PLATE

18

01010-51025

BOLT

19

01643-31032

WASHER

20

01010-51025

BOLT

21

01643-31032

WASHER

22

202-54-58160

COVER

23

203-54-42840

TRIM

24

01010-51020

BOLT

25

01643-31032

WASHER

26

203-54-42331

LEVER

27

203-54-42660

SPRING

28

01010-51020

BOLT

29

01643-31032

WASHER

30

203-54-42290

BRACKET,L.H.

31

203-54-42310

BRACKET,R.H.

32

203-54-42340

SPRING

33

203-54-42320

LEVER

34

20T-54-26310

BOLT

35

01643-31232

WASHER

36

01580-11210

NUT

37

01010-51020

BOLT

38

01643-31032

WASHER

39

203-54-42561

CABLE

40

04210-20500

YOKE

41

04205-10514

PIN

42

04050-11210

PIN,COTTER
