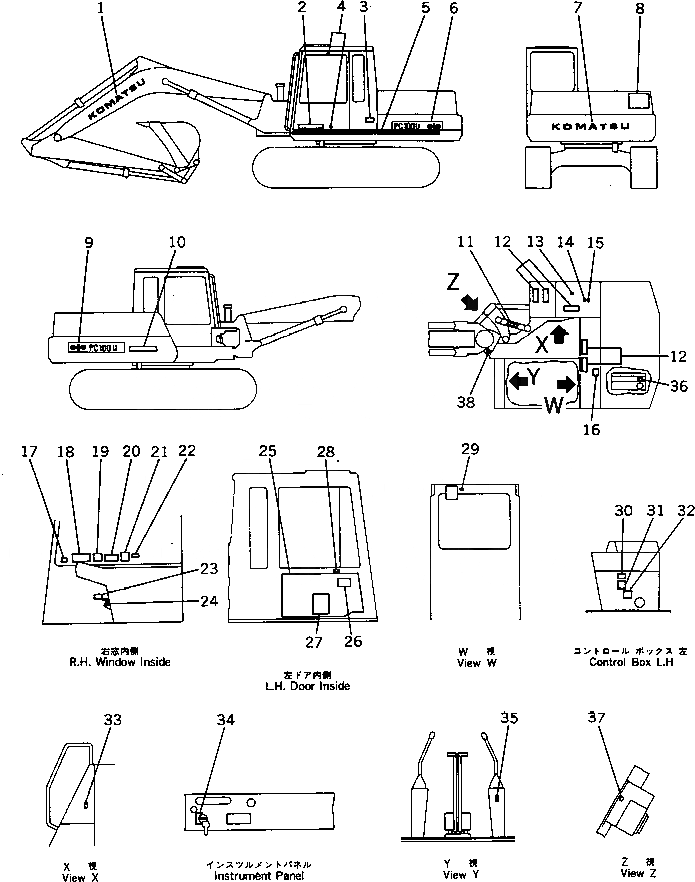

Запчасти Komatsu PC100U-3 МАРКИРОВКА (АНГЛ.) (ДЛЯ WRIST УПРАВЛ-Е)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-41250

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE,GUARD

4

09602-01643

PLATE, NAME

4

01220-60408

SCREW

4

01601-20410

WASHER,SPRING

5

142-54-16170

STRIPE,STRIPE

6

202-00-58111

PLATE, MARK,PC100U

7

203-00-41131

PLATE, MARK,KOMATSU

8

09133-03000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

202-00-58121

PLATE, MARK,PC100U

10

09690-50500

PLATE, MARK,KOMATSU

11

202-00-48170

SEAT,NONSKID

12

154-54-23260

SEAT,NONSKID

13

09669-00002

PLATE, CAUTION,FUEL

14

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

15

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

16

09650-30103

PLATE, INSTRUCTION,RADIATOR

17

205-00-63360

PLATE, CAUTION

18

202-00-58161

PLATE, OPERATING

19

205-00-75340

PLATE

20

205-00-63550

PLATE, CAUTION

21

205-00-63390

PLATE, CAUTION

22

09649-03001

PLATE, INSTRUCTION

23

09131-03000

PLATE, SAFETY,SWING LOCK LEVER

24

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

25

202-54-58340

COVER

26

205-00-63340

PLATE, CAUTION

27

202-00-58220

CHART, OIL

28

205-00-71340

PLATE, OPERATING,DOOR LOCK

29

205-00-63350

PLATE, CAUTION,INSPECTION AND MAINTENANCE

30

09651-03000

PLATE, SAFETY,BEFORE OPERATING

31

09173-03000

PLATE, SAFETY

32

09667-03000

PLATE, SAFETY

33

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL TANK

34

09683-30060

PLATE, OPERATING,ENGINE START

35

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

36

09668-03000

PLATE, SAFETY,RADIATOR CAP

37

201-98-39220

PLATE, CAUTION

38

21K-00-22170

PLATE, MARK
