Запчасти Komatsu PC100U-3 МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

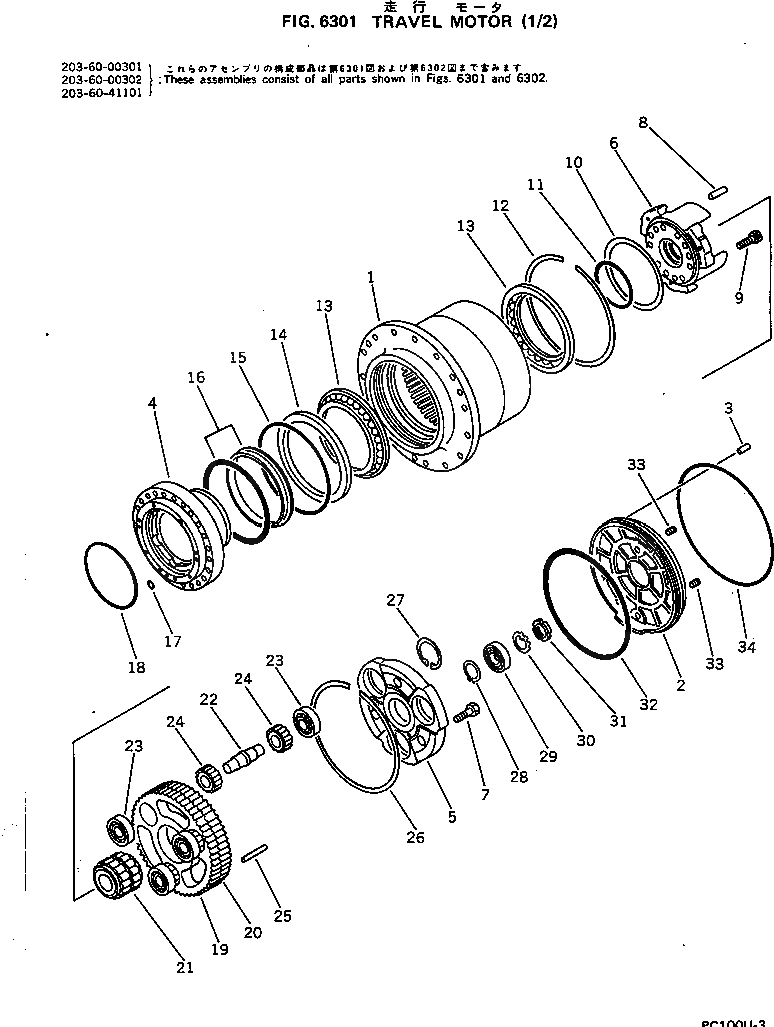

Схема запчастей Komatsu PC100U-3 - МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

203-60-00302

TRAVEL MOTOR ASS'Y

|$1

203-60-00301

TRAVEL MOTOR ASS'Y

|$2

203-60-41101

TRAVEL MOTOR ASS'Y

|$3

TZ150A1103-00

HUB ASS'Y

1

TZ150A1001-02

HUB

1

TZ150A1001-00

HUB

2

TZ150A1008-02

COVER

2

COVER

3

PIN,DOWEL

|$10

TZ150A1102-01

SPINDLE ASS'Y

4

SPINDLE

5

FLANGE,HOLD

6

BOLT,REAMER

7

CARRIER

8

TZ200A1015-00

PIN

9

01252-31850

BOLT

10

TZ200A1013-00

PIECE,DISTANCE

11

TZOWG13120

O-RING (KIT)

12

TZ150A1011-00

RING

13

TZ200A1021-01

BEARING,BALL

13

TZ200A1021-00

BEARING,BALL

14

TZ150A1010-00

PIECE,DISTANCE

15

07000-15260

O-RING (KIT)

16

TZ020923442

SEAL,FLOATING (KIT)

17

07000-11006

O-RING (KIT)

18

TZOWG13183

O-RING (KIT)

|$27

TZ150A1104-00

GEAR ASS'Y

|$28

TZ150A1204-00

GEAR ASS'Y

19

GEAR

20

GEAR

21

TZ150A1007-01

BEARING

22

TZ150A1009-00

SHAFT,CRANK

23

TZ150A1022-00

BEARING

24

TZ150A1023-00

BEARING

25

TZ150A1017-00

PIN

26

TZ150A1012-00

RING

27

TZ150A1020-00

SNAP RING KIT,SNAP

28

TZSJR04018

RING,SNAP

29

TZ150A1024-00

BEARING

30

TZR00005AW07

WASHER

31

TZR00000AN07

NUT

32

07000-15270

O-RING (KIT)

33

TZROHP00001-2

PLUG

34

TZ150A1018-00

RING

Выбрано товаров: 44
